Iscar

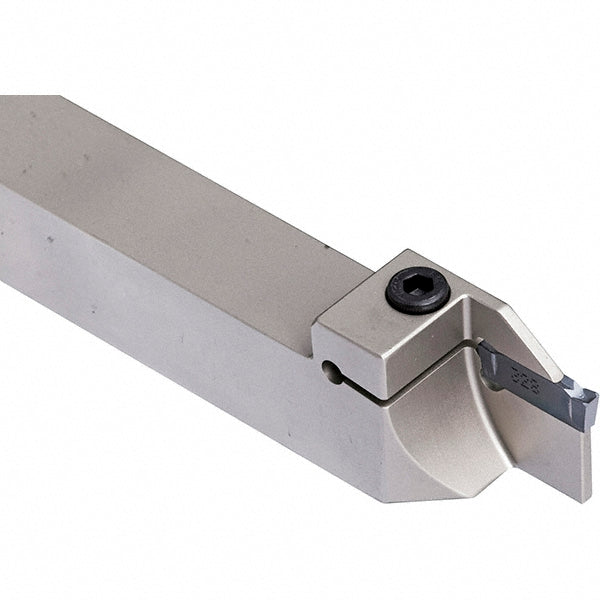

Indexable Grooving - Iscar 2301435
MFR# 2301435Series Do-Grip
$165.37List $167.80
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301435 indexable grooving. Series Do-Grip.
Specifications
Back of bar to cutting edge0.2953
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Complete insert compatibilityDGL 1400JS-15D; DGL 1402J-8D; DGN 1402J; DGR 1400JS-15D; DGR 1402J-8D
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderLeft Hand
Head height0.6063
Head length (mm)18.00
Insert compatibilityDG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.1969
Maximum groove width0.0551
Minimum groove width0.0551
Overall length4.9213
Shank height0.3150
Shank length (mm)107.00
Shank width diameter0.3150
StandardsISO 13399
Toolholder styleDGT
