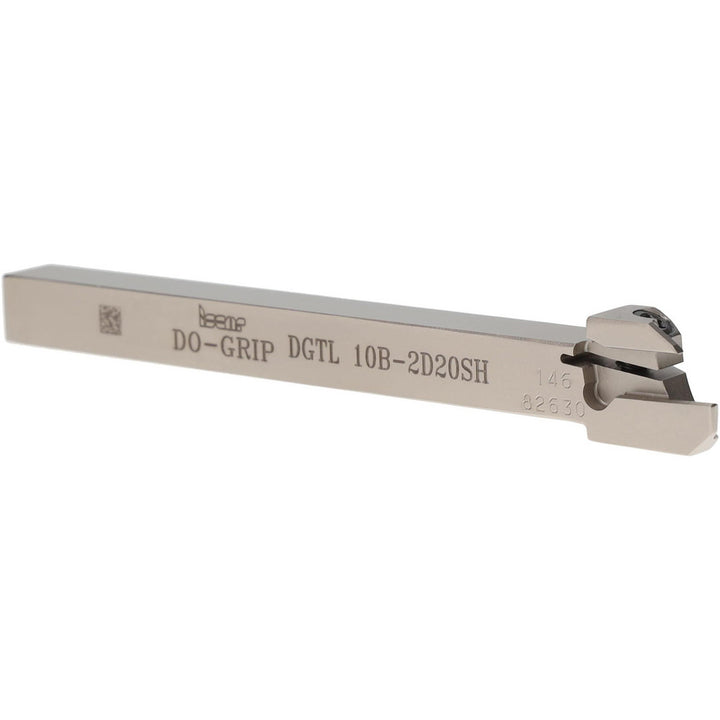

Indexable Grooving - Iscar 2301498
MFR# 2301498Series Do-Grip
$162.49List $167.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301498 indexable grooving. Series Do-Grip.
Specifications
Back of bar to cutting edge0.3622
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Complete insert compatibilityDGL 2202C-6D; DGN 1900WP; DGN 2002C; DGN 2002Z; DGN 2202C; DGN 2202UA; DGN 2202UT; DGN 2400WP; DGN 2502C; DGR 2202C-6D
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderLeft Hand
Head height0.6181
Head length (mm)18.00
Insert compatibilityDG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.3937
Maximum groove width0.0984
Minimum groove width0.0748
Overall length4.7244
Shank height0.3937
Shank length (mm)102.00
Shank width diameter0.3937
StandardsISO 13399
Toolholder styleDGT
