Iscar

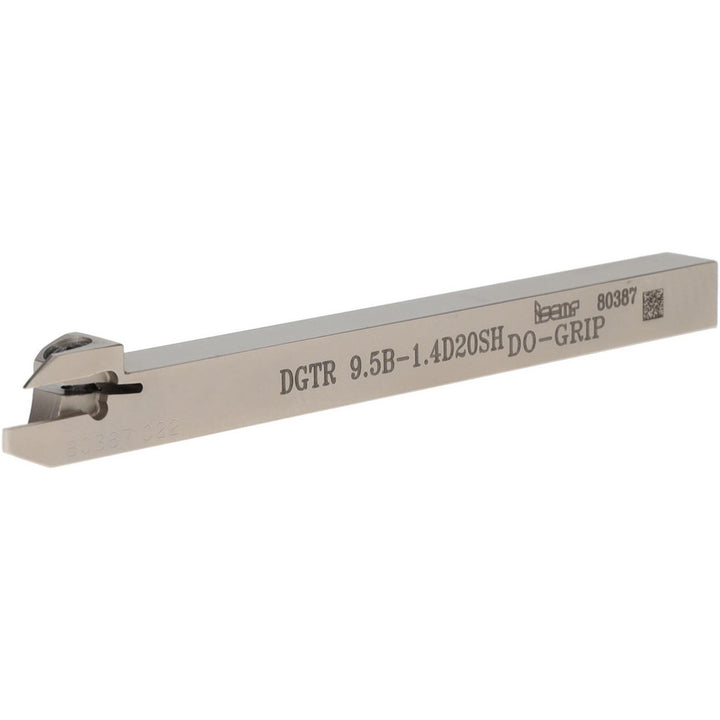

Indexable Grooving - Iscar 2301525
MFR# 2301525Series Do-Grip
$162.49List $167.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301525 indexable grooving. Series Do-Grip.
Specifications
Back of bar to cutting edge0.3500
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Complete insert compatibilityDGL 1400JS-15D; DGL 1402J-8D; DGN 1402J; DGR 1400JS-15D; DGR 1402J-8D
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head height0.5200
Head length0.7100
Insert compatibilityDG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.3950
Maximum groove width0.0550
Minimum groove width0.0550
Overall length4.7000
Shank height0.3750
Shank length3.9900
Shank width diameter in3/8
StandardsISO 13399
Toolholder styleDGT
