Iscar

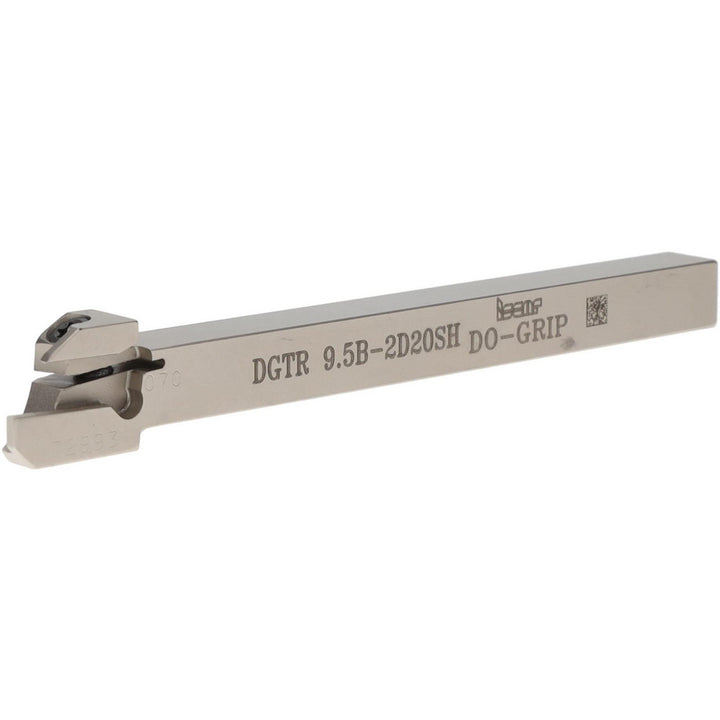

Indexable Grooving - Iscar 2301527
MFR# 2301527Series Do-Grip
$162.49List $167.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301527 indexable grooving. Series Do-Grip.
Specifications
Back of bar to cutting edge0.3400
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Complete insert compatibilityDGL 2202C-6D; DGN 1900WP; DGN 2002C; DGN 2002Z; DGN 2202C; DGN 2202UA; DGN 2202UT; DGN 2400WP; DGN 2502C; DGR 2202C-6D
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head height0.6200
Head length0.7500
Insert compatibilityDG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.3950
Maximum groove width0.0980
Minimum groove width0.0750
Overall length4.7000
Shank height0.3750
Shank length3.9500
Shank width diameter in3/8
StandardsISO 13399
Toolholder styleDGT
