Iscar

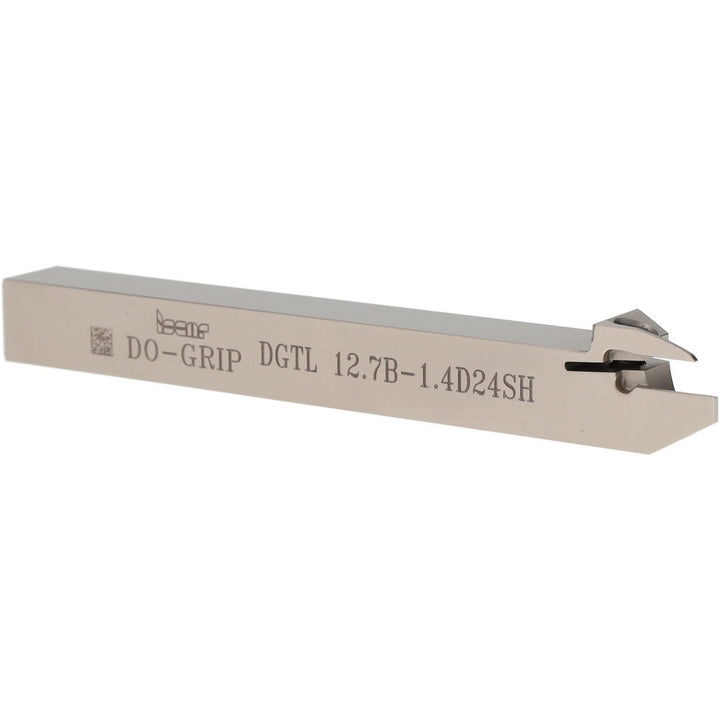

Indexable Grooving - Iscar 2301530
MFR# 2301530Series Do Grip
$165.37List $167.80
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301530 indexable grooving. Series Do Grip.
Specifications
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderLeft Hand
Head height0.6500
Head length0.7500
Insert compatibilityDG. 14..
Insert holding methodClamp
Maximum groove width0.0550
Minimum groove width0.0550
Overall length4.7000
Shank height0.5000
Shank length3.9500
Shank width diameter in1/2
StandardsISO 13399
Toolholder styleDGT
