Iscar

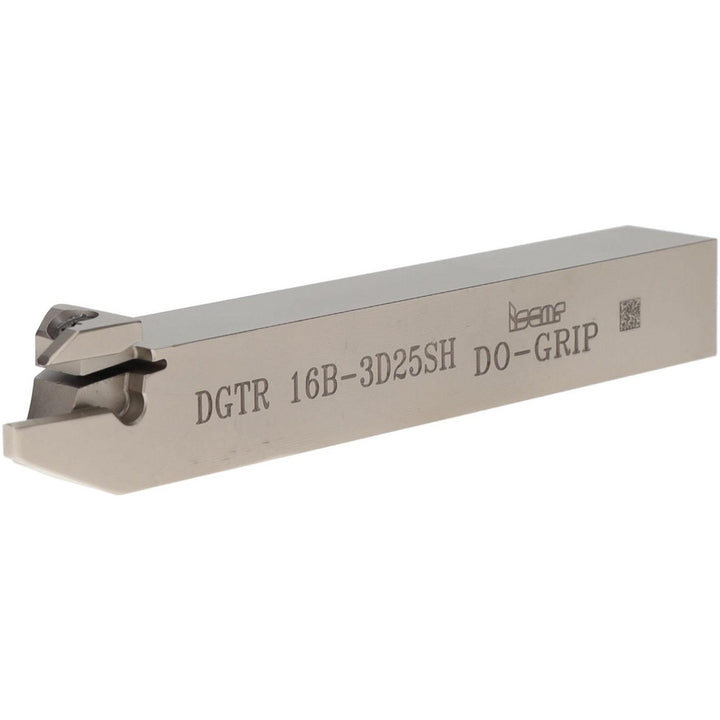

Indexable Grooving - Iscar 2301535
MFR# 2301535Series Do-Grip
$170.63List $176.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301535 indexable grooving. Series Do-Grip.
Specifications
Back of bar to cutting edge0.5827
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Complete insert compatibilityDGL 3102C-15D; DGL 3102C-6D; DGLC 3102C-6D; DGN 3002Z; DGN 3003UA; DGN 3003UT; DGN 3102C; DGNC 3102C; DGNM 3202C; DGR 3000ZS-15D; DGR 3000ZS-6D; DGR 3002Z-6D; DGR 3102C-15D; DGR 3102C-6D
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head height0.7756
Head length (mm)19.50
Insert compatibilityDG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.5000
Maximum groove width0.1252
Minimum groove width0.1181
Overall length4.7244
Shank height0.6299
Shank length (mm)100.50
Shank width diameter0.6299
StandardsISO 13399
Toolholder styleDGT
