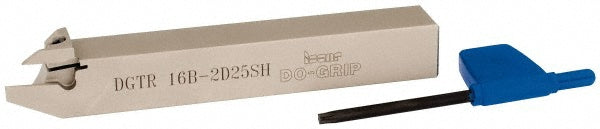

Indexable Grooving - Iscar 2301537
MFR# 2301537Series Do-Grip
$170.63List $176.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301537 indexable grooving. Suited for universal. Series Do-Grip.
Specifications
Back of bar to cutting edge0.5984
Compatible insert size codeDGN-LF/LFT; DGN-P; DGN-UT/UA; DGN-WP; DGN-Z; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR-P; DGR-WP; DGR-Z/ZS; DGR/L-C DGRC/LC-C; DGR/L-J/JS
Complete insert compatibilityDGL 2202C-6D; DGN 1900WP; DGN 2002C; DGN 2002Z; DGN 2202C; DGN 2202UA; DGN 2202UT; DGN 2400WP; DGN 2502C; DGR 2202C-6D
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head height0.7756
Head length0.7680
Insert compatibilityDG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.1181
Maximum groove width0.0984
Maximum workpiece diameter1.0000
Minimum groove width0.0748
Multi use toolYes
Overall length4.7244
Primary workpiece materialUniversal
Shank height0.6299
Shank length3.9564
Shank width diameter0.6299
StandardsISO 13399
Toolholder styleDGT
Toolholder typeNon-Face Grooving
