Iscar

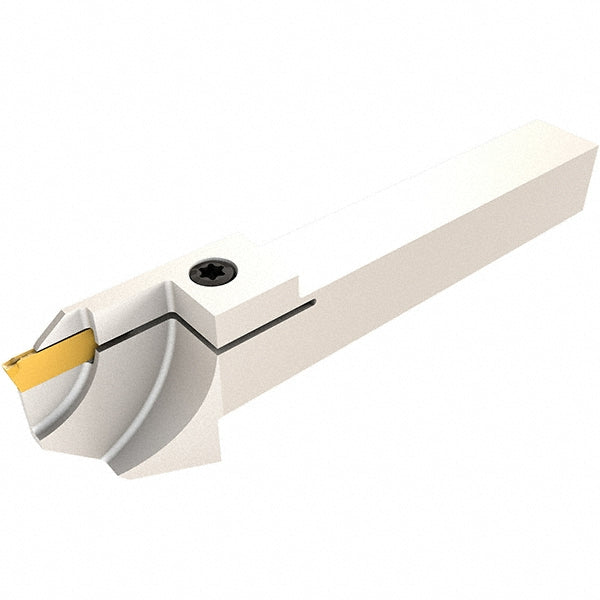

Indexable Grooving - Iscar 2301591
MFR# 2301591Series Do-Grip
$162.49List $167.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301591 indexable grooving. Series Do-Grip.
Specifications
Back of bar to cutting edge0.4449
Compatible insert size codeDGN-P; DGN/DGNM-J/JS/JT; DGR-P; DGR/L-J/JS
Complete insert compatibilityDGL 1001J-8D; DGN 1000P; DGN 1002J; DGN 1500P; DGN 1502J; DGR 1000P-15D; DGR 1000P-6D; DGR 1001J-8D; DGR 1500J-8D; DGR 1500P-15D; DGR 1500P-6D
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head height0.9331
Head length1.2800
Insert compatibilityDG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.3937
Maximum groove width0.0591
Minimum groove width0.0394
Overall length3.7402
Shank height0.4724
Shank length2.4602
Shank width diameter0.4724
StandardsISO 13399
Toolholder styleDGT
