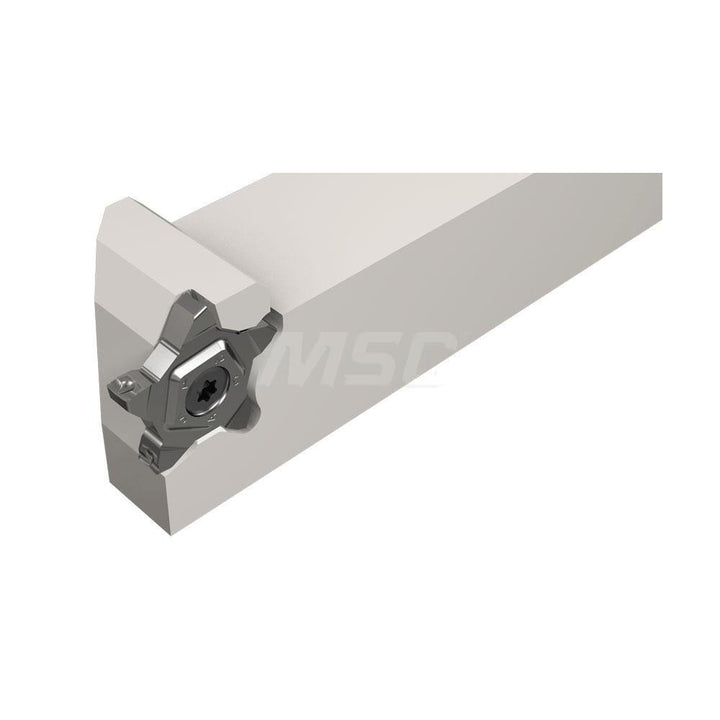

Indexable Grooving - Iscar 2301617
MFR# 2301617Series PentaCut
$197.50List $200.40
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301617 indexable grooving. Series PentaCut.
Specifications
Compatible insert size codePENTA 24-BSPT; PENTA 24-ISO; PENTA 24-MT; PENTA 24-NPT; PENTA 24-UN; PENTA 24-W; PENTA 24-WT; PENTA 24N-C; PENTA 24N-J; PENTA 24N-PF; PENTA 24N-PF/P; PENTA 24N-Z; PENTA 24R-C; PENTA 24R-P; PENTA 24R/L-J; PENTA 24R/L-Z
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderLeft Hand
Head length0.8000
Insert compatibilityPENTA 24...
Insert holding methodScrew
Maximum depth of cut0.2560
Maximum groove width0.1250
Minimum groove width0.0197
Msc manufacturer numberPCHR/L 19-24
Overall length5.0000
Shank height0.7500
Shank length5.0000
Shank width diameter in3/4
StandardsISO 13399
Toolholder stylePCH
