Iscar

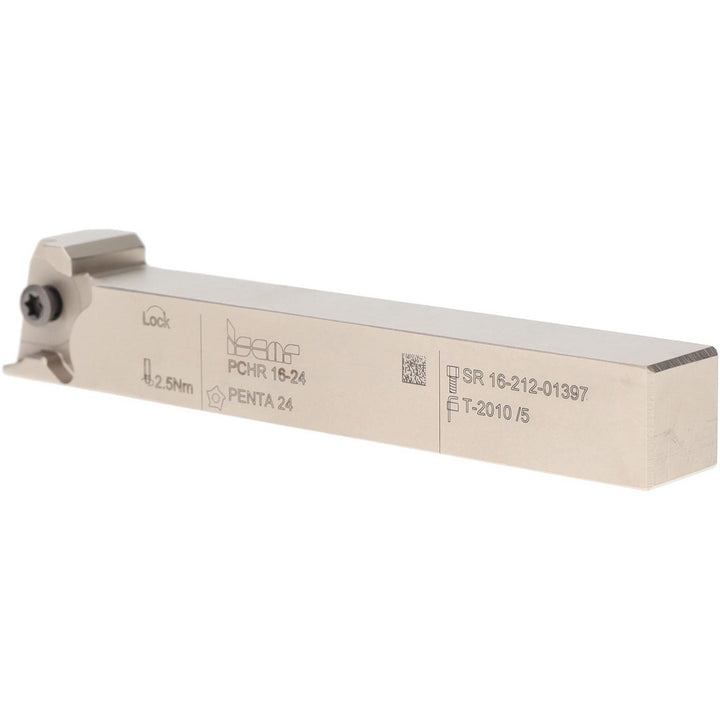

Indexable Grooving - Iscar 2301623
MFR# 2301623Series PentaCut
$165.60List $171.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301623 indexable grooving. Series PentaCut.
Specifications
Compatible insert size codePENTA 24-BSPT; PENTA 24-ISO; PENTA 24-MT; PENTA 24-NPT; PENTA 24-UN; PENTA 24-W; PENTA 24-WT; PENTA 24N-C; PENTA 24N-J; PENTA 24N-PF; PENTA 24N-PF/P; PENTA 24N-Z; PENTA 24R-C; PENTA 24R-P; PENTA 24R/L-J; PENTA 24R/L-Z
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderRight Hand
Head length0.7677
Insert compatibilityPENTA 24...
Insert holding methodScrew
Maximum depth of cut0.2560
Maximum groove width0.1250
Minimum groove width0.0197
Msc manufacturer numberPCHR/L 16-24
Overall length4.7244
Shank height0.6299
Shank length3.9567
Shank width diameter0.6299
StandardsISO 13399
Toolholder stylePCH
