Iscar

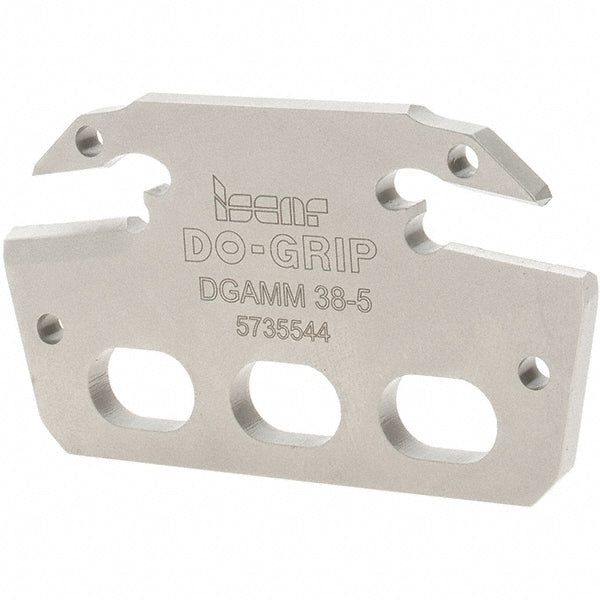

Indexable Grooving - Iscar 2301705
MFR# 2301705Cat# DGAMM 38-5Series Do-Grip
$150.39List $155.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301705 indexable grooving. Series Do-Grip.
Specifications
Blade height1.5000
Blade styleDGAMM
Blade width0.1570
Compatible insert styleDGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGN-LF/LFT; DGN-P; DGN-UT/UA; DGN-WP; DGN-Z; DGR/L-C DGRC/LC-C; DGR/L-J/JS; DGR-P; DGR-WP; DGR-Z/ZS
Complete insert compatibilityDGL 1001J-8D; DGL 1400JS-15D; DGL 1402J-8D; DGL 2200JS-15D; DGL 2200JS-6D; DGL 2202C-6D; DGL 2202J-6D; DGL 3100JS-15D; DGL 3100JS-6D; DGL 3102C-15D; DGL 3102C-6D; DGL 3102J-15D; DGL 3102J-6D; DGL 4003C-4D; DGL 4003J-4D; DGL 5003C-4D; DGL 5003J-4D; DGL 630
Cutting directionRight Hand
Cutting height1.0920
Cutting tool applicationGrooving; Parting; Turning
Insert seat size0.1570
Manufacturers catalog numberDGAMM 38-5
Maximum groove width0.1970
Minimum groove width0.1890
Msc manufacturer number2301705
Overall length2.5400
StandardsISO 13399
