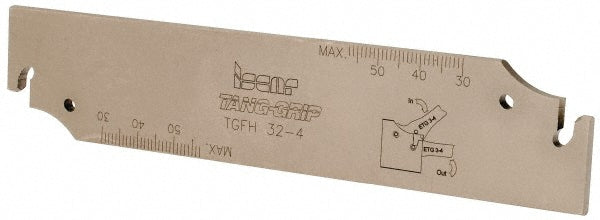

Indexable Cut-Off - Iscar 2301763

Iscar

Indexable Cut-Off - Iscar 2301763

MFR# 2301763Series Sumo-Grip; Tang-Grip

$155.43List $160.50 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2301763 indexable cut-off. Series Sumo-Grip; Tang-Grip.

Specifications

Blade height1.2598
Blade overall length5.9055
Blade styleTGFH
Blade width0.1339
Compatible insert size code4
Compatible insert styleTAG
Complete insert compatibilityTAG L4C-4D; TAG L4J-4D; TAG N4A; TAG N4J; TAG N4JT; TAG N4UT; TAG R4C-4D; TAG R4J-4D
Complete tool block toolholder style compatibilityHSK A100WH-TBK-32L; HSK A63WH-TBK-32L; HSK A63WH-TBK-32R; SGTBF 25.4-A; SGTBF 31.7-A; SGTBK 32-9; SGTBU 19-6G; SGTBU 25.4-6G; SGTBU 25.4C-6; SGTBU 31.8-6G; SGTBU 38.1-6G; UBHCL 25.4-32; UBHCR 25.4-32
Cutting directionNeutral
Cutting height0.9764
Cutting tool applicationGrooving; Parting; Turning
End typeSingle
Insert holding methodSelf Grip
Insert styleTAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-UT; TAG R/L-C; TAG R/L-J/JS
Insert width0.1457
Insert width (mm)3.70
Maximum insert width0.1772
Maximum workpiece diameter3.9370
Minimum insert width0.1457
StandardsISO 13399
Tool block styleHSK A-WH-TBK-R/L; SGTBF; SGTBK; SGTBU/SGTBN; UBHCR/L
