Iscar

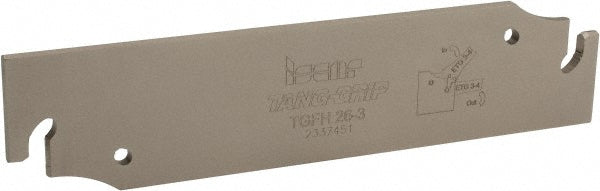

Indexable Cut-Off - Iscar 2301764
MFR# 2301764Cat# TGFH 26-3Series Sumo Grip; Tang-Grip
$146.84List $149.00
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301764 indexable cut-off. Series Sumo Grip; Tang-Grip.
Specifications
Blade height1.0236
Blade overall length4.3310
Blade styleTGFH
Blade width0.0980
Compatible insert size code3
Compatible insert styleTAG
Cutting directionNeutral
Cutting height0.8425
Cutting tool applicationGrooving; Parting; Turning
End typeDouble
Insert holding methodSelf Grip
Insert styleTAG 3..
Manufacturers catalog numberTGFH 26-3
Maximum insert width0.1378
Maximum workpiece diameter2.9500
Minimum insert width0.1102
StandardsISO 13399
