Iscar

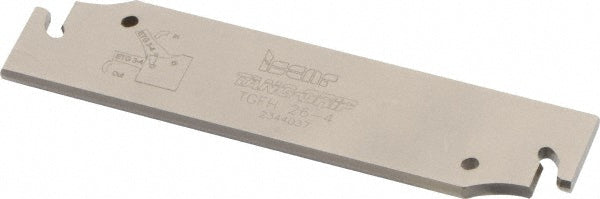

Indexable Cut-Off - Iscar 2301765
MFR# 2301765Series Sumo-Grip; Tang-Grip
$144.29List $149.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301765 indexable cut-off. Series Sumo-Grip; Tang-Grip.
Specifications
Blade height1.0236
Blade overall length4.3307
Blade styleTGFH
Blade width0.1339
Compatible insert size code4
Compatible insert styleTAG
Complete insert compatibilityTAG L4C-4D; TAG L4J-4D; TAG N4A; TAG N4J; TAG N4JT; TAG N4UT; TAG R4C-4D; TAG R4J-4D
Complete tool block toolholder style compatibilitySGTBL 25-6; SGTBR 25-6; SGTBU 16-5G; SGTBU 19-5G; SGTBU 25.4-5G; UBHCL 19-26; UBHCR 19-26
Cutting directionNeutral
Cutting height0.8425
Cutting tool applicationGrooving; Parting; Turning
End typeSingle
Insert holding methodSelf Grip
Insert styleTAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-UT; TAG R/L-C; TAG R/L-J/JS
Insert width0.1457
Insert width (mm)3.70
Maximum insert width0.1772
Maximum workpiece diameter3.1496
Minimum insert width0.1457
StandardsISO 13399
Tool block styleSGTBR/L; SGTBU/SGTBN; UBHCR/L
