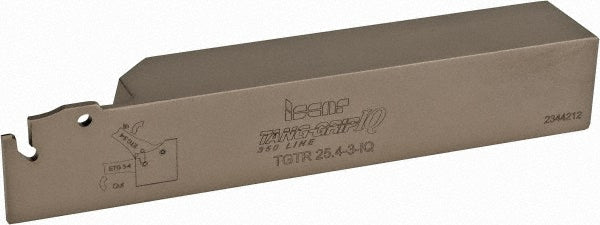

Indexable Cut-Off - Iscar 2301826

MFR# 2301826Series Tang-GripIQ

$203.17List $209.80 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2301826 indexable cut-off. Series Tang-GripIQ.

Specifications

Back of bar to cutting edge1.0000
Blade width0.0980
Compatible insert size codeTAG L1.4J-8D; TAG L1.4JS-10D; TAG L2C-6D; TAG L2J-15D; TAG L2J-6D; TAG L2JS-15D; TAG L2JS-6D; TAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-15D; TAG L3JS-6D; TAG L4C-4D; TAG L4J-4D; TAG L5C-4D; TAG L5J-4D; TAG L6.3C-4D; TAG L6.3J-4D; TAG N1.4
Complete insert compatibilityTAG L1.4J-8D; TAG L1.4JS-10D; TAG L2C-6D; TAG L2J-15D; TAG L2J-6D; TAG L2JS-15D; TAG L2JS-6D; TAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-15D; TAG L3JS-6D; TAG L4C-4D; TAG L4J-4D; TAG L5C-4D; TAG L5J-4D; TAG L6.3C-4D; TAG L6.3J-4D; TAG N1.4
Coolant throughNo
Cutting tool applicationGrooving; Parting; Turning
Hand of holderRight
Head height1.0700
Head length0.9000
Insert holding methodSelf Grip
Maximum insert width0.1380
Maximum workpiece diameter2.2500
Minimum insert width0.1100
Overall length5.9050
Shank height1.0000
Shank length5.0100
Shank width diameter1.0000
StandardsISO 13399
Toolholder styleTGT
