Iscar

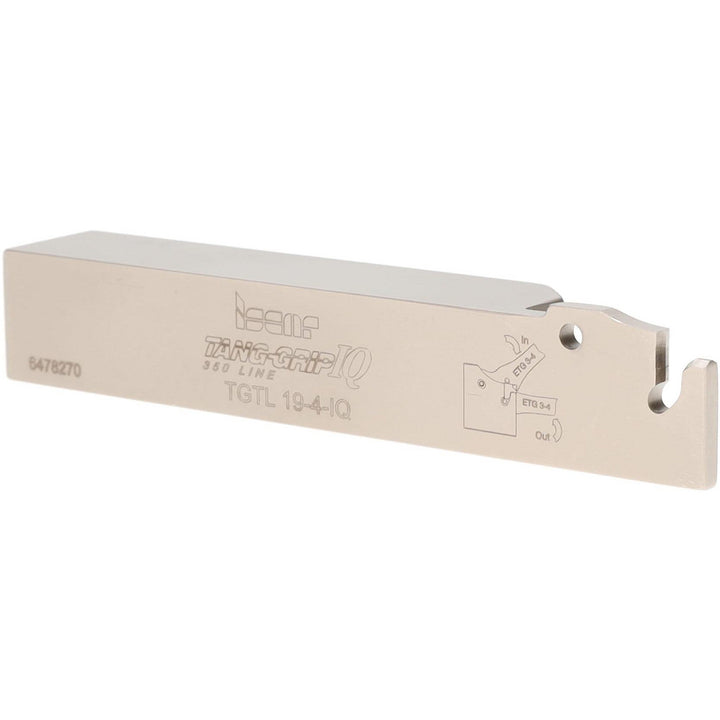

Indexable Grooving - Iscar 2301854
MFR# 2301854Series Tang-GripIQ
$178.19List $184.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301854 indexable grooving. Series Tang-GripIQ.
Specifications
Compatible insert size codeTAG N-A; TAG N-C/W/M; TAG N-HF; TAG N-J/JS/JT; TAG N-LF; TAG N-MF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS
Complete insert compatibilityTAG L4C-4D; TAG L4J-4D; TAG N4C; TAG N4CB; TAG N4J; TAG N4JT; TAG N4M; TAG N4UT; TAG N4W; TAG R4C-4D; TAG R4J-4D
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderLeft Hand
Head height0.8200
Head length0.9000
Insert compatibilityTAG
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.0000
Maximum groove width0.1770
Minimum groove width0.1460
Overall length4.5000
Shank height0.7500
Shank length3.6000
Shank width diameter in3/4
StandardsISO 13399
Toolholder styleTGT
