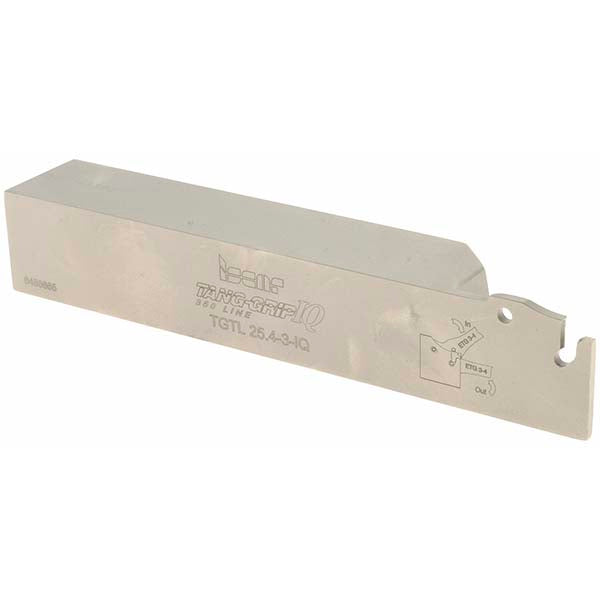

Indexable Grooving - Iscar 2301855

Iscar

Indexable Grooving - Iscar 2301855

MFR# 2301855Series Tang-GripIQ

$203.17List $209.80 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2301855 indexable grooving. Series Tang-GripIQ.

Specifications

Compatible insert size codeTAG N-A; TAG N-C/W/M; TAG N-HF; TAG N-J/JS/JT; TAG N-LF; TAG N-MF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS
Complete insert compatibilityTAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-6D; TAG N3.2JT; TAG N3C; TAG N3CB; TAG N3J; TAG N3JS; TAG N3JT; TAG N3M; TAG N3UT; TAG N3W; TAG R3C-15D; TAG R3C-6D; TAG R3C-8D; TAG R3J-6D; TAG R3JS-6D
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderLeft Hand
Head height1.0700
Head length0.9000
Insert compatibilityTAG
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.1250
Maximum groove width0.1380
Minimum groove width0.1100
Overall length5.9050
Shank height1.0000
Shank length5.0050
Shank width diameter in1
StandardsISO 13399
Toolholder styleTGT
