Iscar

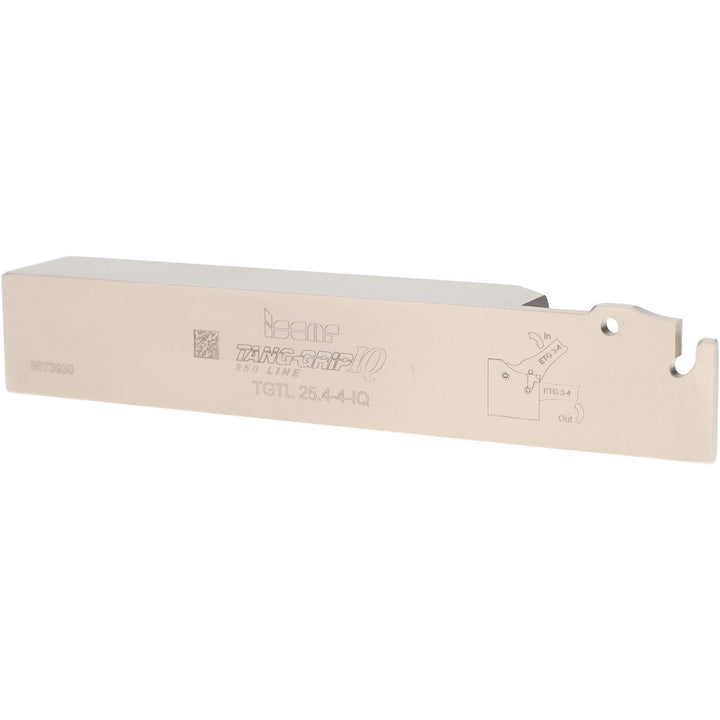

Indexable Grooving - Iscar 2301856
MFR# 2301856Series Tang-GripIQ
$203.17List $209.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301856 indexable grooving. Series Tang-GripIQ.
Specifications
Compatible insert size codeTAG N-A; TAG N-C/W/M; TAG N-HF; TAG N-J/JS/JT; TAG N-LF; TAG N-MF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS
Complete insert compatibilityTAG L4C-4D; TAG L4J-4D; TAG N4C; TAG N4CB; TAG N4J; TAG N4JT; TAG N4M; TAG N4UT; TAG N4W; TAG R4C-4D; TAG R4J-4D
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertNo
Hand of holderLeft Hand
Head height1.0700
Head length0.9000
Insert compatibilityTAG
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.2500
Maximum groove width0.1770
Minimum groove width0.1460
Overall length5.9050
Shank height1.0000
Shank length5.0050
Shank width diameter in1
StandardsISO 13399
Toolholder styleTGT
