Iscar
Indexable Cut-Off - Iscar 2301884
MFR# 2301884Cat# TGAD 3NSeries Tang-Grip
$153.05List $155.30
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

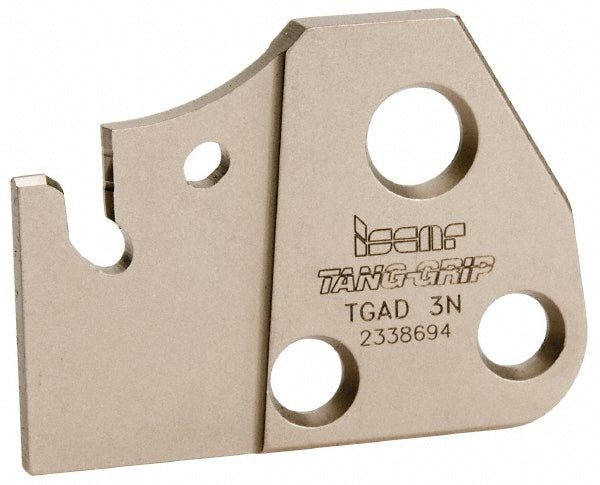

The Iscar 2301884 indexable cut-off. Series Tang-Grip.
Specifications
Blade height1.1811
Blade overall length1.6339
Blade styleTGAD
Blade width0.1575
Compatible insert size code3
Compatible insert styleTAG
Cutting directionNeutral
Cutting height0.9449
Cutting tool applicationGrooving; Parting; Turning
End typeSingle
Insert holding methodSelf Grip
Insert styleTAG N..; TAG R/L..
Manufacturers catalog numberTGAD 3N
Maximum insert width0.1378
Maximum workpiece diameter1.3800
Minimum insert width0.1102
StandardsISO 13399
