Iscar

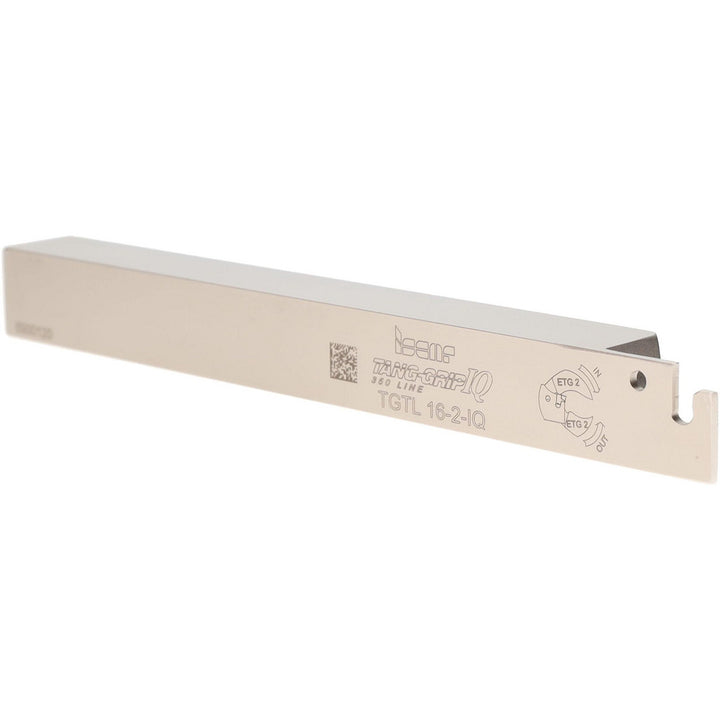

Indexable Grooving - Iscar 2301905
MFR# 2301905Series Tang-Grip
$164.53List $169.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301905 indexable grooving. Series Tang-Grip.
Specifications
Compatible insert size codeTAG N-A; TAG N-C/W/M; TAG N-HF; TAG N-J/JS/JT; TAG N-LF; TAG N-MF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS
Complete insert compatibilityTAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-LF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Hand of holderLeft Hand
Insert compatibilityTAG 2
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.6300
Maximum groove width0.0984
Minimum groove width0.0710
Msc manufacturer numberTGTL 16-2
Overall length5.9100
Shank height0.6260
Shank width diameter0.6260
StandardsISO 13399
Toolholder styleTGT
