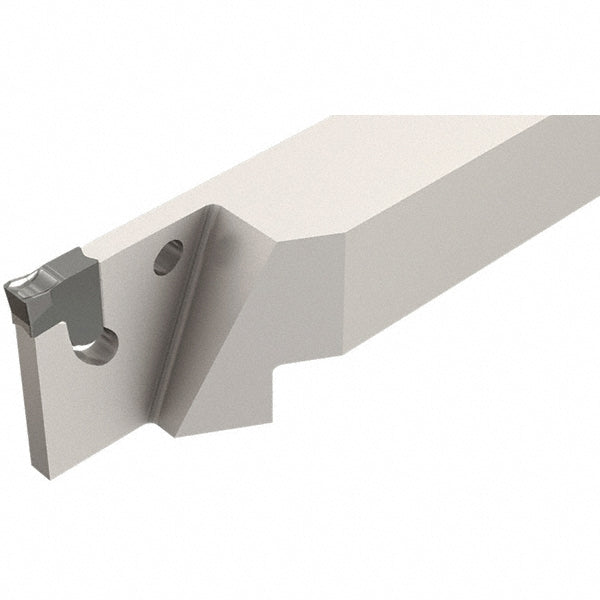

Indexable Cut-Off - Iscar 2301908

MFR# 2301908Series Tang-GripIQ

$147.19List $152.00 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2301908 indexable cut-off. Series Tang-GripIQ.

Specifications

Back of bar to cutting edge0.5000
Blade width0.0980
Compatible insert size codeTAG L1.4J-8D; TAG L1.4JS-10D; TAG L2C-6D; TAG L2J-15D; TAG L2J-6D; TAG L2JS-15D; TAG L2JS-6D; TAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-15D; TAG L3JS-6D; TAG L4C-4D; TAG L4J-4D; TAG L5C-4D; TAG L5J-4D; TAG L6.3C-4D; TAG L6.3J-4D; TAG N1.4
Complete insert compatibilityTAG L1.4J-8D; TAG L1.4JS-10D; TAG L2C-6D; TAG L2J-15D; TAG L2J-6D; TAG L2JS-15D; TAG L2JS-6D; TAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-15D; TAG L3JS-6D; TAG L4C-4D; TAG L4J-4D; TAG L5C-4D; TAG L5J-4D; TAG L6.3C-4D; TAG L6.3J-4D; TAG N1.4
Coolant throughNo
Cutting tool applicationGrooving; Parting; Turning
Hand of holderRight
Head length0.7300
Insert holding methodSelf Grip
Maximum insert width0.1380
Maximum workpiece diameter1.2600
Minimum insert width0.1100
Overall length5.9050
Shank height0.5000
Shank length0.7300
Shank width diameter0.5000
StandardsISO 13399
Toolholder styleTGT
