Indexable Cut-Off - Iscar 2301914

Iscar

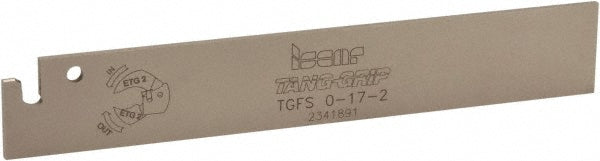

Indexable Cut-Off - Iscar 2301914

MFR# 2301914Cat# TGFS 0-17-2Series Tang-Grip

$163.57List $168.90 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2301914 indexable cut-off. Series Tang-Grip.

Specifications

Blade height0.6772
Blade overall length4.3310
Blade styleTGFS
Blade width0.0650
Compatible insert size code2
Compatible insert styleTAG
Complete insert compatibilityTAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-6D; TAG N3A; TAG N3C; TAG N3CB; TAG N3J; TAG N3JS; TAG N3JT; TAG N3LF; TAG N3M; TAG N3UT; TAG N3W; TAG R3C-15D; TAG R3C-6D; TAG R3C-8D; TAG R3J-6D; TAG R3JS-6D
Cutting directionNeutral
Cutting height0.6770
Cutting tool applicationGrooving; Parting; Turning
End typeSingle
Insert holding methodClamp
Insert seat size1.65
Insert styleTAG 2..
Insert width0.0710
Insert width (mm)1.80
Manufacturers catalog numberTGFS 0-17-2
Maximum insert width0.0945
Maximum workpiece diameter1.3800
Minimum insert width0.0710
StandardsISO 13399
