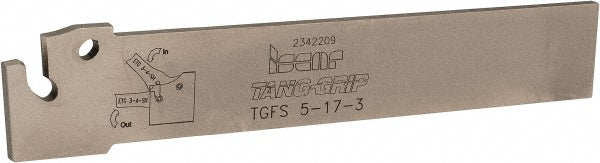

Indexable Cut-Off - Iscar 2301918

Iscar

Indexable Cut-Off - Iscar 2301918

MFR# 2301918Cat# TGFS 5-17-3Series Tang-Grip

$163.57List $168.90 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2301918 indexable cut-off. Series Tang-Grip.

Specifications

Blade height0.6850
Blade overall length4.3310
Blade styleTGFS
Blade width0.0980
Compatible insert size code3
Compatible insert styleTAG
Complete insert compatibilityTAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-6D; TAG N3A; TAG N3C; TAG N3CB; TAG N3J; TAG N3JS; TAG N3JT; TAG N3LF; TAG N3M; TAG N3UT; TAG N3W; TAG R3C-15D; TAG R3C-6D; TAG R3C-8D; TAG R3J-6D; TAG R3JS-6D
Cutting directionNeutral
Cutting height0.6890
Cutting tool applicationGrooving; Parting; Turning
End typeSingle
Insert holding methodClamp
Insert seat size2.5
Insert styleTAG 3..
Insert width0.1102
Insert width (mm)2.80
Manufacturers catalog numberTGFS 5-17-3
Maximum insert width0.1378
Maximum workpiece diameter2.3600
Minimum insert width0.1102
StandardsISO 13399
