Iscar

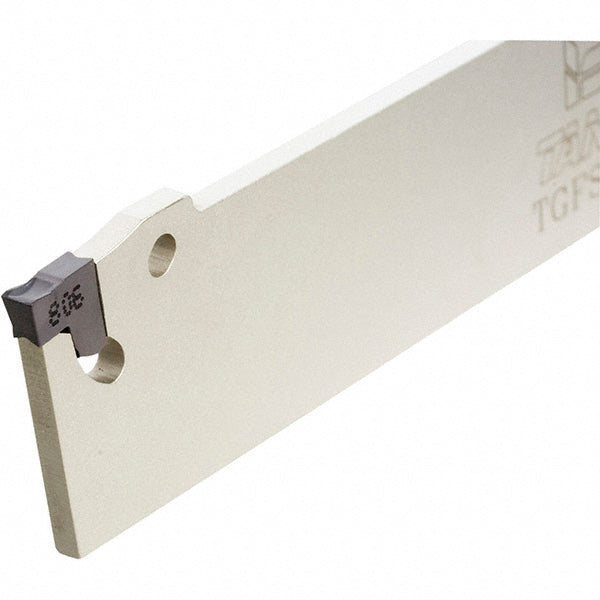

Indexable Cut-Off - Iscar 2301922
MFR# 2301922Series Tang-Grip
$198.49List $201.40
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301922 indexable cut-off. Series Tang-Grip.
Specifications
Blade height1.1260
Blade overall length (mm)150.00
Blade styleTGFS
Blade width (mm)3.40
Compatible insert size code4
Compatible insert styleTAG
Complete insert compatibilityTAG L4C-4D; TAG L4J-4D; TAG N4A; TAG N4C; TAG N4CB; TAG N4CJT; TAG N4J; TAG N4M; TAG N4UT; TAG N4W; TAG R4C-4D; TAG R4J-4D
Cutting directionNeutral
Cutting height1.1300
Cutting tool applicationGrooving; Parting; Turning
End typeSingle
Insert holding methodClamp
Insert seat size3.4
Insert styleTAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-UT; TAG R/L-C; TAG R/L-J/JS
Insert width0.1457
Insert width (mm)3.70
Maximum insert width0.1770
Maximum workpiece diameter3.9400
Minimum insert width0.1457
StandardsISO 13399
