Iscar

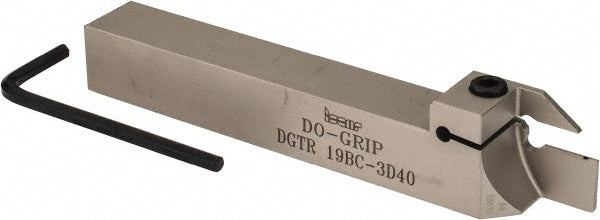

Indexable Grooving - Iscar 2301935
MFR# 2301935Series Do-Grip
$257.98List $266.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301935 indexable grooving. Series Do-Grip.
Specifications
Compatible insert size codeDGN/DGNM-J/JS/JT; DGR/L-J/JS
Complete insert compatibilityC#-ASHR/L; DGN-LF/LFT; DGN-P; DGN-UT/UA; DGN-Z; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR/L-C DGRC/LC-C; DGR/L-J/JS; DGR/L-Z/ZS
Coolant throughYes
Cutting tool applicationCut-Off; Grooving
Hand of holderRight Hand
Head length1.3600
Insert compatibilityDG.C 3..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.7870
Maximum groove width0.1250
Minimum groove width0.1180
Msc manufacturer numberDGTR 19BC-3D40
Overall length5.5000
Shank height in3/4
Shank length4.1400
Shank width diameter in3/4
StandardsISO 13399
Toolholder styleDGT
