Iscar

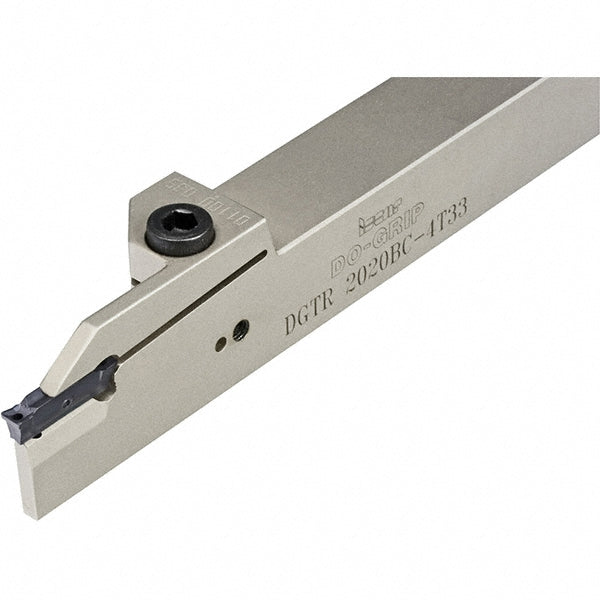

Indexable Grooving - Iscar 2301939
MFR# 2301939Series Do-Grip
$273.29List $282.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301939 indexable grooving. Series Do-Grip.
Specifications
Back of bar to cutting edge0.9300
Compatible insert size codeDGN-UT/UA; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR/L-C DGRC/LC-C; DGR/L-J/JS
Complete insert compatibilityDGN-UT/UA; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR/L-C DGRC/LC-C; DGR/L-J/JS
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Hand of holderRight Hand
Head length1.6500
Insert compatibilityDG..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.9800
Maximum groove width0.1575
Minimum groove width0.1575
Overall length6.0000
Shank height in1
Shank length4.3500
Shank width diameter in1
StandardsISO 13399
Toolholder styleDGT
