Iscar

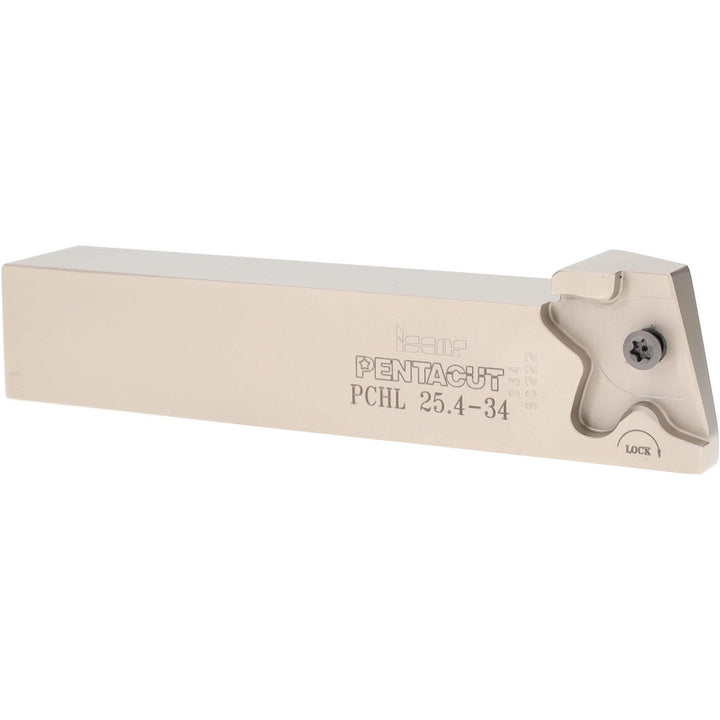

Indexable Grooving - Iscar 2301960
MFR# 2301960Series PentaCut
$210.24List $217.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2301960 indexable grooving. Series PentaCut.
Specifications
Back of bar to cutting edge0.9300
Compatible insert size codePENTA 34F-R/L; PENTA 34N-C; PENTA 34N-J; PENTA 34N-PB; PENTA 34R/L-C; PENTA 34R/L-J; PENTA 34R/L-PB
Complete insert compatibilityPENTA 34F-R/L; PENTA 34N-C; PENTA 34N-PB; PENTA 34R/L-C; PENTA 34R/L-PB
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Hand of holderLeft Hand
Head length1.2200
Insert compatibilityPENTA 34..
Insert holding methodScrew
Internal or externalExternal
Maximum depth of cut0.3937
Maximum groove width0.1570
Minimum groove width0.0590
Overall length5.5000
Shank height1.0000
Shank length4.2800
Shank width diameter in1
StandardsISO 13399
Toolholder stylePCH
