Iscar

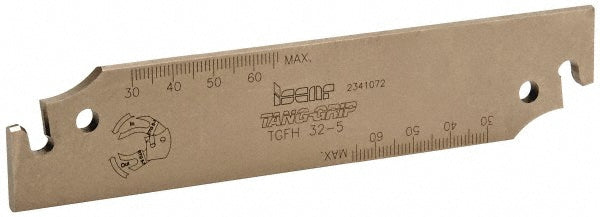

Indexable Cut-Off - Iscar 2302143
MFR# 2302143Cat# TGFH 32-5Series Tang-Grip
$158.18List $160.50
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2302143 indexable cut-off. Series Tang-Grip.
Specifications
Blade height1.2600
Blade overall length5.9060
Blade styleTGFH
Blade width0.1570
Compatible insert size code5
Compatible insert styleTAG
Complete insert compatibilityTAG L5C-4D; TAG L5J-4D; TAG N4.8C; TAG N5C; TAG N5J; TAG N5JT; TAG N5UT; TAG R5C-4D; TAG R5J-4D
Complete tool block toolholder style compatibilityC..TBK..,HS..TBK..,IM..TBK..,SGT..
Cutting directionNeutral
Cutting height0.9764
Cutting tool applicationGrooving; Parting; Turning
End typeSingle
Insert holding methodClamp
Insert seat size4
Insert styleTAG 5..
Insert width0.1850
Insert width (mm)4.70
Manufacturers catalog numberTGFH 32-5
Maximum insert width0.2165
Maximum workpiece diameter4.7200
Minimum insert width0.1850
StandardsISO 13399
