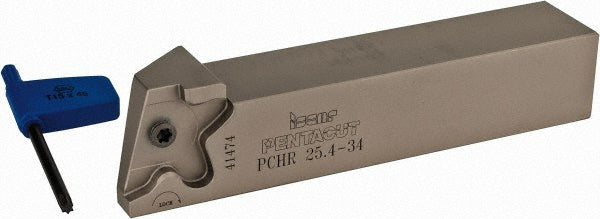

Indexable Grooving - Iscar 2302157

MFR# 2302157Series Penta Cut

$204.01List $207.00 Save 1%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2302157 indexable grooving. Suited for universal. Series Penta Cut.

Specifications

Back of bar to cutting edge0.9300
Compatible insert size codePENTA 34F-R/L; PENTA 34N-C; PENTA 34N-J; PENTA 34N-PB; PENTA 34R/L-C; PENTA 34R/L-J; PENTA 34R/L-PB
Complete insert compatibilityPENTA 34F239-0.15-22L; PENTA 34F239-0.15-22R; PENTA 34F247-0.20-22L; PENTA 34F247-0.20-22R; PENTA 34F300-0.40-22L; PENTA 34F300-0.40-22R; PENTA 34F400-0.40-22L; PENTA 34F400-0.40-22R; PENTA 34L150C08D; PENTA 34L150J06D; PENTA 34L150J15D; PENTA 34L150PB-6D
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.2200
Insert compatibilityPENTA 34..
Insert holding methodScrew
Maximum bore depth1.2200
Maximum depth of cut0.3940
Maximum groove width0.1570
Minimum groove width0.0590
Multi use toolYes
Overall length5.5000
Primary workpiece materialUniversal
Shank height1.0000
Shank length4.2800
Shank width diameter1.0000
StandardsISO 13399
Toolholder stylePCH
Toolholder typeNon-Face Grooving
