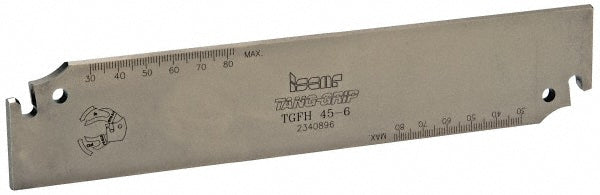

Indexable Cut-Off - Iscar 2302169
MFR# 2302169Cat# TGFH 45-6Series Tang-Grip
$272.22List $281.10
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2302169 indexable cut-off. Series Tang-Grip.
Specifications
Blade height1.7717
Blade overall length8.8580
Blade styleTGFH
Blade width0.2050
Compatible insert size code6
Compatible insert styleTAG
Complete insert compatibilityTAG L6.3C-4D; TAG L6.3J-4D; TAG N6.3C; TAG N6.3J; TAG N6.3JT; TAG N6UT; TAG R6.3C-4D; TAG R6.3J-4D; TAGB 608Y; TAGB 630Y
Complete tool block toolholder style compatibilitySGTBU 25-8M; SGTBU 32-8M
Cutting directionNeutral
Cutting height1.5000
Cutting tool applicationGrooving; Parting; Turning
End typeSingle
Insert holding methodClamp
Insert seat size5.2
Insert styleTAG 6..
Insert width0.2244
Insert width (mm)5.70
Manufacturers catalog numberTGFH 45-6
Maximum insert width0.2560
Maximum workpiece diameter6.3000
Minimum insert width0.2244
StandardsISO 13399
Tool block styleSGTBU/SGTBN
