Iscar

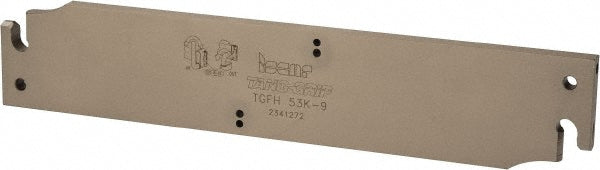

Indexable Cut-Off - Iscar 2302181
MFR# 2302181Cat# TGFH 53K-9Series Tang-Grip
$409.34List $422.70
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2302181 indexable cut-off. Series Tang-Grip.
Specifications
Blade height2.0709
Blade overall length10.2360
Blade styleTGFH
Blade width0.3230
Compatible insert size code9
Compatible insert styleTAG
Complete insert compatibilityTAG N12.7W; TAGB 1208Y; TAGB 1260H; TAGB 1260Y
Complete tool block toolholder style compatibilitySGTBK 38-9; SGTBK 40-9; SGTBK 50-9; SGTBU 40-9; SGTBU 50-9
Cutting directionNeutral
Cutting height1.7795
Cutting tool applicationGrooving; Parting; Turning
End typeSingle
Insert holding methodClamp
Insert seat size8.2
Insert styleTAG 9..
Insert width0.3425
Insert width (mm)8.70
Manufacturers catalog numberTGFH 53K-9
Maximum insert width0.3937
Maximum workpiece diameter8.4600
Minimum insert width0.3425
StandardsISO 13399
