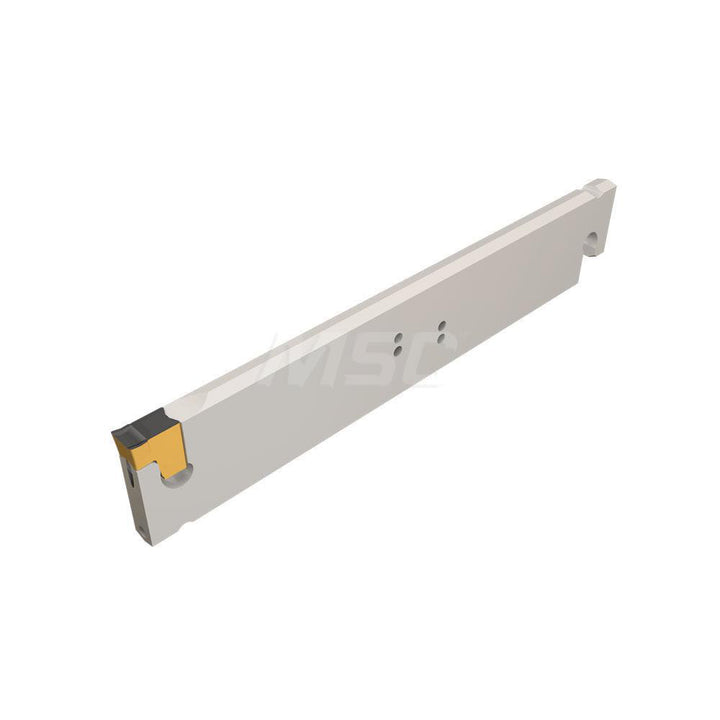

Indexable Cut-Off - Iscar 2302192

Iscar

Indexable Cut-Off - Iscar 2302192

MFR# 2302192Series Tang-GripIQ

$162.49List $167.80 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2302192 indexable cut-off. Series Tang-GripIQ.

Specifications

Blade height1.3780
Blade overall length7.0870
Blade styleTGSU
Blade width0.1570
Compatible insert size code5
Compatible insert styleTAG
Complete insert compatibilityTAG L4C-4D; TAG L4J-4D; TAG N4A; TAG N4C; TAG N4CB; TAG N4CJT; TAG N4J; TAG N4M; TAG N4UT; TAG N4W; TAG R4C-4D; TAG R4J-4D
Complete tool block toolholder style compatibilityTGTBU 20-35; TGTBU 25-35; TGTBU 32-35; TGTBU 32-35 HD; TGTBU 40-35
Cutting directionNeutral
Cutting height1.3070
Cutting tool applicationGrooving; Parting; Turning
End typeSingle
Insert holding methodClamp
Insert seat size4
Insert styleTAG N 5..; TAG R/L 5..
Insert width0.1850
Insert width (mm)4.70
Maximum insert width0.2165
Maximum workpiece diameter5.6700
Minimum insert width0.1850
Msc manufacturer numberTGSU 35-5
StandardsISO 13399
Tool block styleTGTBU
