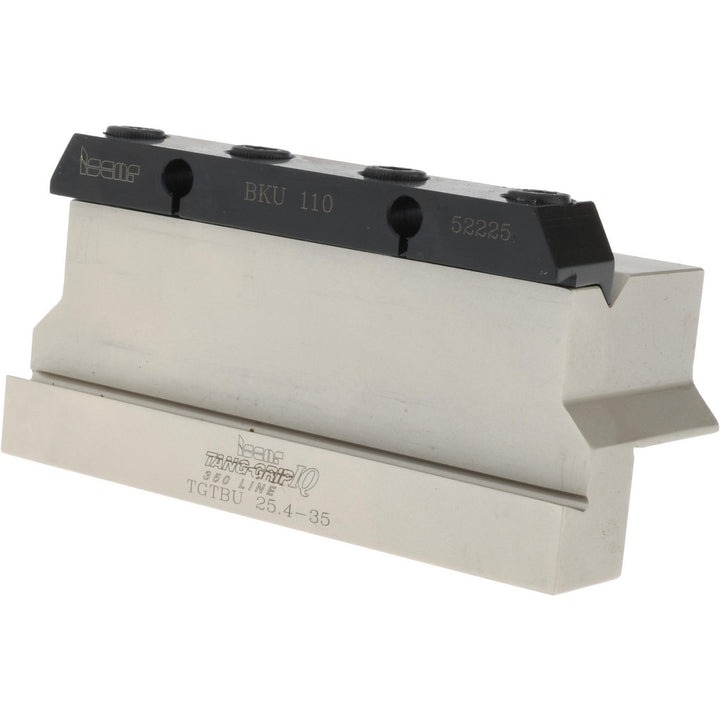

Indexable Cut-Off - Iscar 2302197

Iscar

Indexable Cut-Off - Iscar 2302197

MFR# 2302197Series Tang-GripIQ

$412.45List $425.90 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2302197 indexable cut-off. Series Tang-GripIQ.

Specifications

Compatible blade height1.3800
Compatible blade width0.2360
Complete blade compatibilityTGSU 35-1.4-IQ; TGSU 35-2-IQ; TGSU 35-3-IQ-4Z; TGSU 35-4-IQ-4Z; TGSU 35-5-IQ
Complete insert compatibilityTAG L1.4J-8D; TAG L1.4JS-10D; TAG L2C-6D; TAG L2J-6D; TAG L3C-6D; TAG N1.4C; TAG N1.4J; TAG N1.6C; TAG N1.6J; TAG N2.4C; TAG N2C; TAG N2J; TAG N2JS; TAG N2JT; TAG N2UT; TAG N3CB; TAG N3UT; TAG N4UT; TAG N5UT; TAG N6UT; TAG R1.4J-8D; TAG R1.4JS-10D; TAG R2
Coolant throughNo
Cutting tool applicationGrooving; Parting; Turning
Head length projection4.3310
ModularNo
Overall height2.2000
Overall length4.3310
Overall width1.7720
ReversibleNo
Shank height1.0000
Shank width1.0240
Shoulder height0.7200
Tool block styleTGTBU
