Iscar

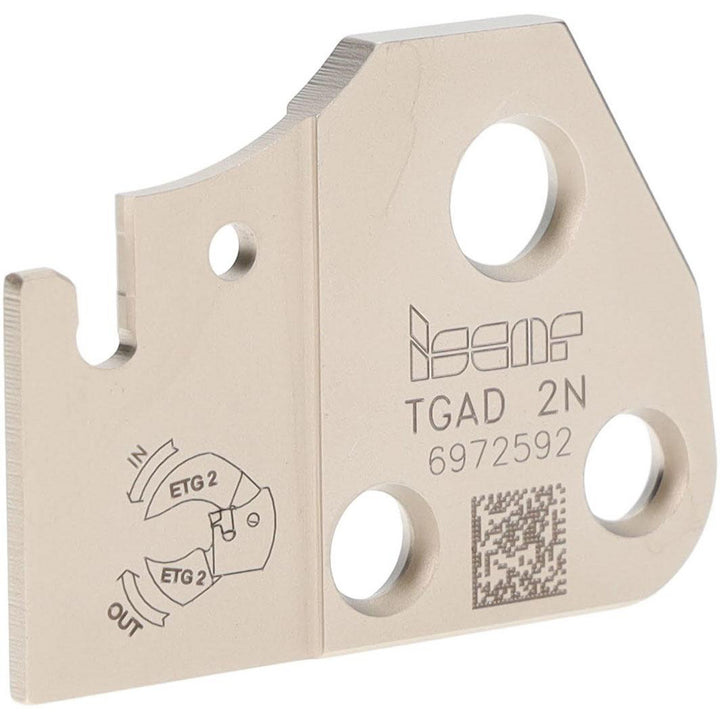

Indexable Grooving - Iscar 2302228
MFR# 2302228Cat# TGAD 2NSeries Tang-Grip
$150.39List $155.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2302228 indexable grooving. Series Tang-Grip.
Specifications
Blade height1.1811
Blade styleTGAD
Blade width0.0670
Compatible insert styleTAG N..; TAG R/L..
Cutting directionNeutral
Cutting tool applicationGrooving; Parting; Turning
Insert holding methodClamp
Manufacturers catalog numberTGAD 2N
Maximum groove width0.0945
Maximum workpiece diameter1.2598
Minimum groove width0.0710
Overall length1.6339
StandardsISO 13399
