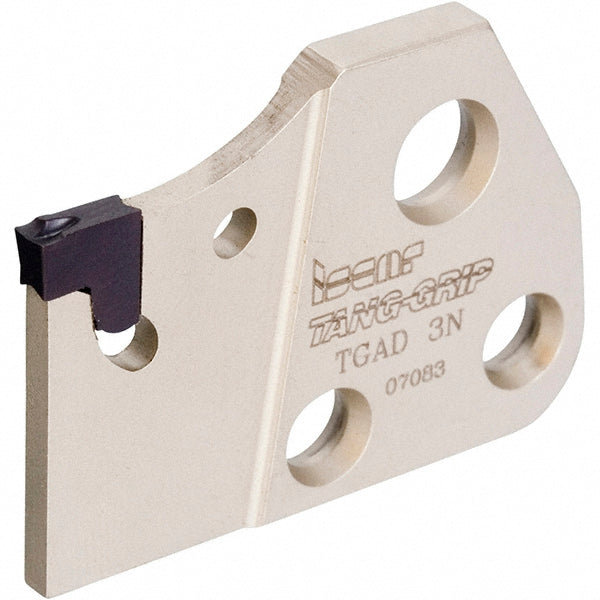

Indexable Cut-Off - Iscar 2302229

Iscar

Indexable Cut-Off - Iscar 2302229

MFR# 2302229Series Tang-Grip

$251.98List $260.20 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2302229 indexable cut-off. Series Tang-Grip.

Specifications

Blade height1.0236
Blade overall length (mm)110.50
Blade styleTGFH
Blade width0.3110
Complete insert compatibilityTAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-6D; TAG N3A; TAG N3C; TAG N3CB; TAG N3J; TAG N3JS; TAG N3JT; TAG N3LF; TAG N3M; TAG N3UT; TAG N3W; TAG R3C-15D; TAG R3C-6D; TAG R3C-8D; TAG R3J-6D; TAG R3JS-6D
Complete tool block toolholder style compatibilityC..TBK..,HS..TBK..,IM..TBK..,SGT..
Cutting directionRight Hand
Cutting height0.8425
Cutting tool applicationGrooving; Parting; Turning
End typeSingle
HandRight Hand
Insert holding methodClamp
Insert seat size1.65
Insert styleTAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-LF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS
Insert width0.0710
Insert width (mm)1.80
Maximum insert width0.0945
Maximum workpiece diameter2.2000
Minimum insert width0.0710
StandardsISO 13399
