Iscar

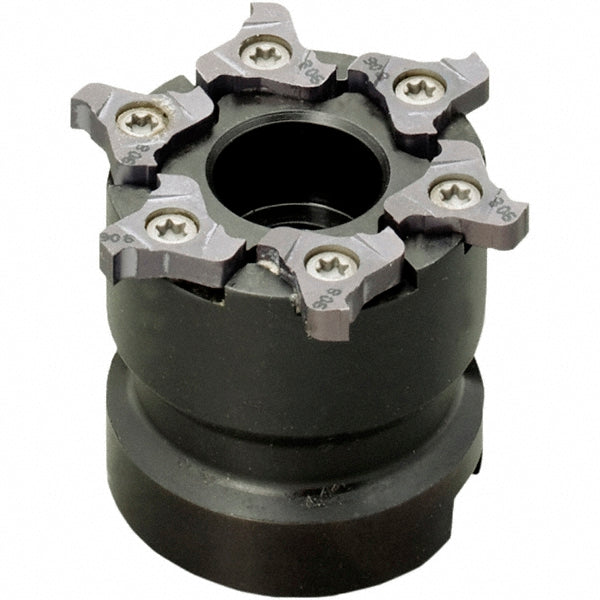

Indexable Milling Cutters - Iscar 2302281
MFR# 2302281Cat# TRIB 2.0-.75SM 6Z-BSeries TRIB-SM
$504.54List $521.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.2
Description
The Iscar 2302281 indexable milling cutters. Series TRIB-SM.
Specifications
Compatible insert size code4.0-0.2
Compatible insert styleTRI
Complete insert compatibilityTRI 16RK-4.0-0.2
Connection typeArbor
Cutter body width1.5330
Cutter diameter in2
Cutting directionRight Hand
Hole diameter in3/4
Hub diameter in1-19/32
Insert holding methodScrew
Manufacturers catalog numberTRIB 2.0-.75SM 6Z-B
Maximum body diameter1.5940
Maximum cutting width0.2560
Maximum depth of cut0.1890
Minimum cutting diameter (mm)50.80
Minimum cutting width0.1580
Number of cutter inserts6
Number of teeth6
Shank diameter in3/4
Toolholder styleTRIB-SM
Tool applicationMilling
