Iscar

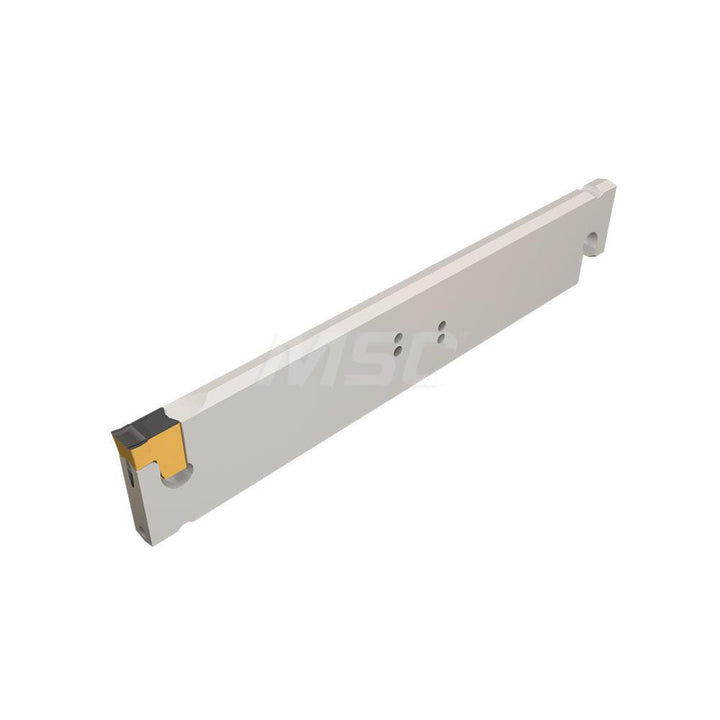

Indexable Cut-Off - Iscar 2302287
MFR# 2302287Series Tang-GripIQ
$162.49List $167.80
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2302287 indexable cut-off. Series Tang-GripIQ.
Specifications
Blade height1.3780
Blade overall length7.0870
Blade styleTGSU
Blade width0.0410
Compatible insert size code1.4
Compatible insert styleTAG
Complete insert compatibilityTAG L1.4J-8D; TAG L1.4JS-10D; TAG N1.4C; TAG N1.4J; TAG R1.4J-8D; TAG R1.4JS-10D
Complete tool block toolholder style compatibilityTGTBU 20-35; TGTBU 25-35; TGTBU 32-35; TGTBU 32-35 HD; TGTBU 40-35
Cutting directionNeutral
Cutting height1.3070
Cutting tool applicationGrooving; Parting; Turning
End typeSingle
Insert holding methodClamp
Insert seat size2.5
Insert styleTAG N 1.4..; TAG R/L 1.4..
Insert width0.0550
Insert width (mm)1.40
Maximum insert width0.0550
Maximum workpiece diameter1.3800
Minimum insert width0.0550
Msc manufacturer numberTGSU 35-1.4
StandardsISO 13399
Tool block styleTGTBU
