Iscar

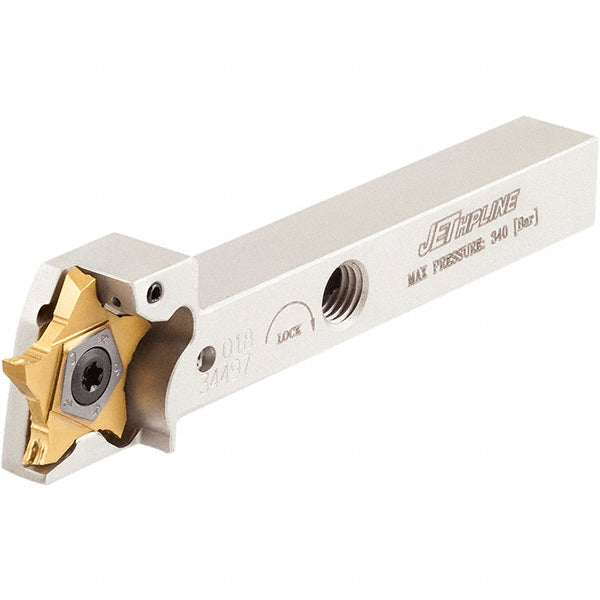

Indexable Grooving - Iscar 2302379
MFR# 2302379Series PentaCut
$255.96List $264.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2302379 indexable grooving. Series PentaCut.
Specifications
Back of bar to cutting edge0.3700
Compatible insert size codePENTA 24-BSPT; PENTA 24-ISO; PENTA 24-MT; PENTA 24-NPT; PENTA 24-UN; PENTA 24-W; PENTA 24-WT; PENTA 24N-C; PENTA 24N-J; PENTA 24N-PF; PENTA 24N-PF/P; PENTA 24N-Z; PENTA 24R-C; PENTA 24R-P; PENTA 24R/L-J; PENTA 24R/L-Z
Complete insert compatibilityPENTA 24N-J; PENTA 24N-J (Full Radius); PENTA 24N-PF; PENTA 24N-Z; PENTA 24R/L-J; PENTA 24R/L-Z
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertYes
Hand of holderRight Hand
Head length0.9646
Insert compatibilityPENTA 24..
Insert holding methodScrew
Internal or externalExternal
Maximum depth of cut0.2560
Maximum groove width0.1260
Minimum groove width0.0197
Overall length4.7244
Shank height0.6300
Shank length3.7600
Shank width diameter0.6300
StandardsISO 13399
Toolholder stylePCH
