Iscar

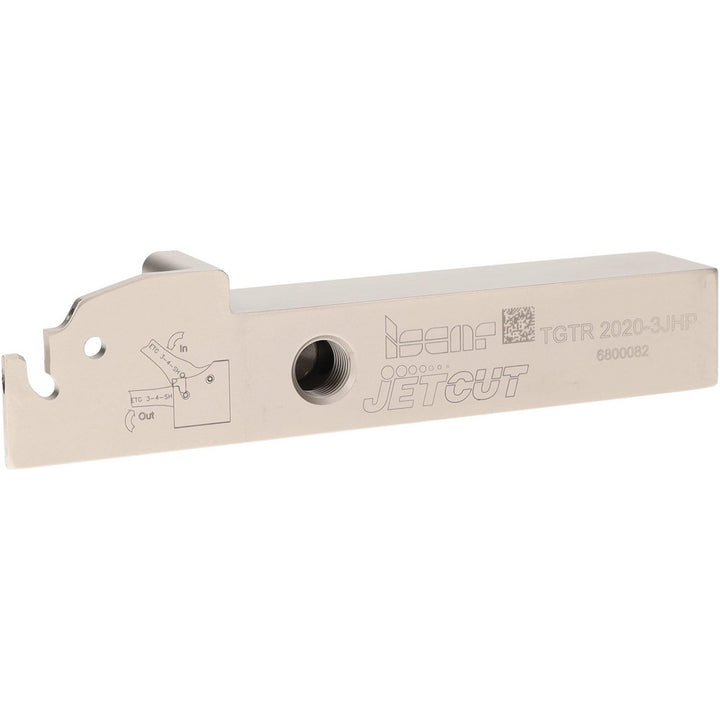

Indexable Grooving - Iscar 2302404
MFR# 2302404Series Tang-Grip
$301.76List $311.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2302404 indexable grooving. Series Tang-Grip.
Specifications
Compatible insert size codeTAG N-A; TAG N-C/W/M; TAG N-HF; TAG N-J/JS/JT; TAG N-LF; TAG N-MF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS
Complete insert compatibilityTAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-LF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS
Coolant throughYes
Cutting tool applicationCut-Off; Grooving
Hand of holderRight Hand
Head height (mm)27.00
Head length (mm)35.00
Insert compatibilityTAG
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.0630
Maximum groove width (mm)3.50
Minimum groove width0.1102
Overall length4.7244
Shank height (mm)20.00
Shank length (mm)85.00
Shank width diameter (mm)20.00
StandardsISO 13399
Toolholder styleTGT
