Iscar

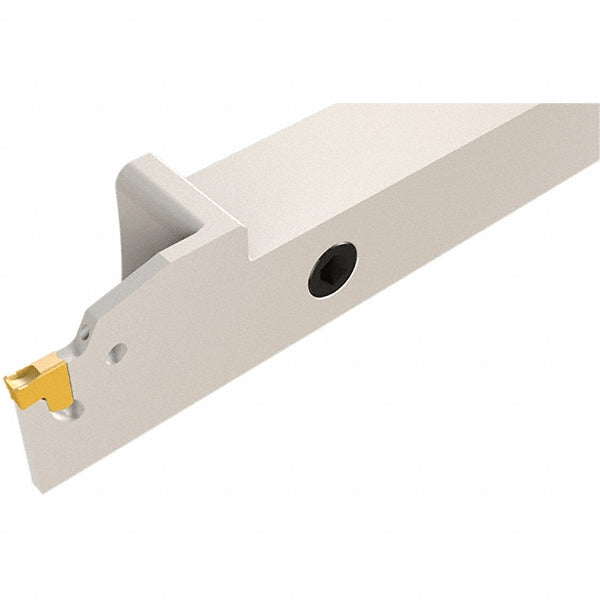

Indexable Grooving - Iscar 2302408
MFR# 2302408Series Tang-Grip
$301.76List $311.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2302408 indexable grooving. Series Tang-Grip.
Specifications
Compatible insert size codeTAG N-A; TAG N-C/W/M; TAG N-HF; TAG N-J/JS/JT; TAG N-LF; TAG N-MF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS
Complete insert compatibilityTAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-LF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS
Coolant throughYes
Cutting tool applicationCut-Off; Grooving
Hand of holderRight Hand
Head height1.0300
Head length1.3800
Insert compatibilityTAG
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.8748
Maximum groove width0.1378
Minimum groove width0.1102
Overall length4.7244
Shank height0.7500
Shank length3.3400
Shank width diameter in3/4
StandardsISO 13399
Toolholder styleTGT
