Iscar

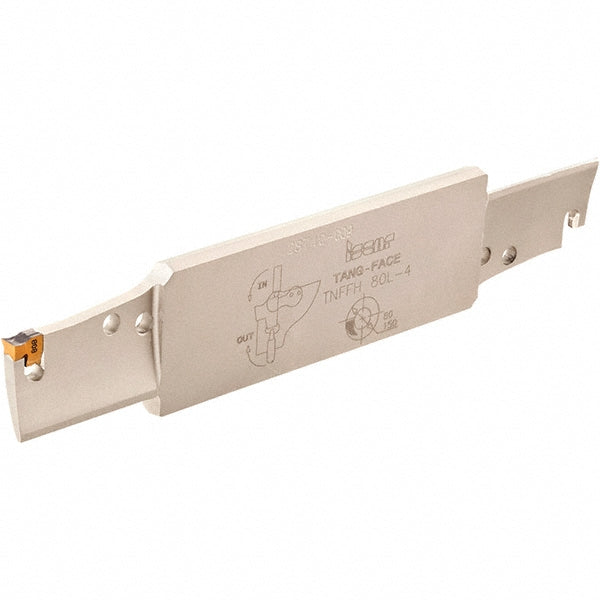

Indexable Grooving - Iscar 2302417
MFR# 2302417Series TangFace
$271.92List $288.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2302417 indexable grooving. Series TangFace.
Specifications
Blade height1.2600
Blade styleTNFFH
Blade width0.2047
Compatible insert styleTNF-M; TNF-P
Complete insert compatibilityTNF 3M; TNF 4P
Cutting directionRight Hand
Cutting tool applicationGrooving; Parting; Turning
Maximum depth of cut1.2600
Maximum groove width0.1575
Maximum workpiece diameter5.9055
Minimum groove width0.1575
Minimum workpiece diameter3.1496
Overall length5.9055
StandardsISO 13399
