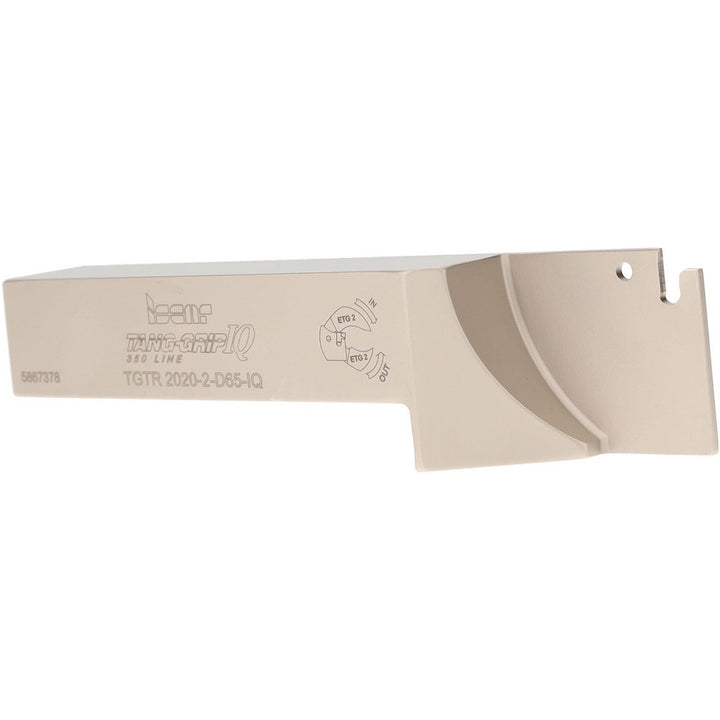

Indexable Grooving - Iscar 2302444
MFR# 2302444Series Tang-Grip
$186.90List $193.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2302444 indexable grooving. Series Tang-Grip.
Specifications
Back of bar to cutting edge0.7600
Compatible insert size codeTAG N-A; TAG N-C/W/M; TAG N-HF; TAG N-J/JS/JT; TAG N-LF; TAG N-MF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS
Complete insert compatibilityTAG N-A; TAG N-C/W/M; TAG N-J/JS/JT; TAG N-LF; TAG N-UT; TAG R/L-C; TAG R/L-J/JS
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Hand of holderRight Hand
Head length (mm)40.00
Insert compatibilityTAG
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut1.2795
Maximum groove width (mm)2.40
Minimum groove width0.0650
Overall length4.9213
Shank height (mm)20.00
Shank length (mm)85.00
Shank width diameter (mm)20.00
StandardsISO 13399
Toolholder styleTGT
