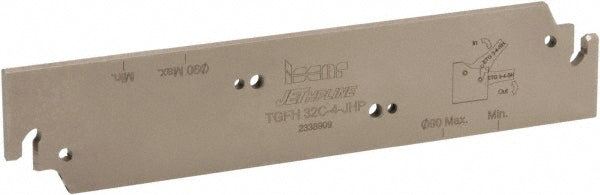

Indexable Cut-Off - Iscar 2302504

Iscar

Indexable Cut-Off - Iscar 2302504

MFR# 2302504Cat# TGFH 32C-4-JHPSeries Tang-Grip

$236.68List $244.40 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2302504 indexable cut-off. Series Tang-Grip.

Specifications

Blade height1.2600
Blade overall length5.9060
Blade styleTGFH
Blade width0.1340
Compatible insert size code4
Compatible insert styleTAG
Complete insert compatibilityTAG L4C-4D; TAG L4J-4D; TAG N4A; TAG N4C; TAG N4CB; TAG N4CJT; TAG N4J; TAG N4M; TAG N4UT; TAG N4W; TAG R4C-4D; TAG R4J-4D
Complete tool block toolholder style compatibilityTGTBU 20-6G-JHP; TGTBU 25-6G-JHP
Cutting directionNeutral
Cutting height0.9764
Cutting tool applicationGrooving; Parting; Turning
End typeSingle
Insert holding methodClamp
Insert seat size3.4
Insert styleTAG 4..
Insert width0.1457
Insert width (mm)3.70
Manufacturers catalog numberTGFH 32C-4-JHP
Maximum insert width0.1770
Maximum workpiece diameter3.5400
Minimum insert width0.1457
StandardsISO 13399
Tool block styleTGTBU JHP
