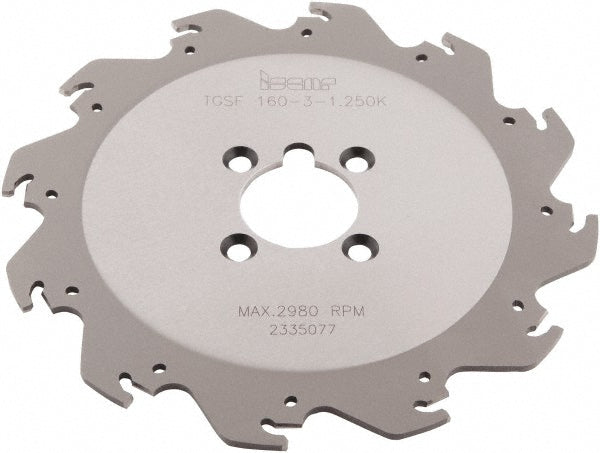

Indexable Milling Cutters - Iscar 2302609

Iscar

Indexable Milling Cutters - Iscar 2302609

MFR# 2302609Series TangSlit (TGSF)

$1,266.78List $1,308.10 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2302609 indexable milling cutters. Series TangSlit (TGSF).

Specifications

Compatible insert styleTAG N3
Complete insert compatibilityTAG N1.4C; TAG N1.4J; TAG N1.6C; TAG N1.6J; TAG N2.4C; TAG N2A; TAG N2C; TAG N2J; TAG N2JS; TAG N2JT; TAG N2LF; TAG N2UT; TAG N3A; TAG N3CB; TAG N3LF; TAG N3UT; TAG N4A; TAG N4UT; TAG N5UT; TAG N6UT
Connection typeArbor
Cutter diameter6.2990
Hole diameter in1-1/4
Insert holding methodClamp
Maximum depth of cut2.0500
Maximum rpm2980
Number of cutter inserts12
Number of teeth8
RadiusNo
Toolholder styleTGSF
Tooth typeStraight
