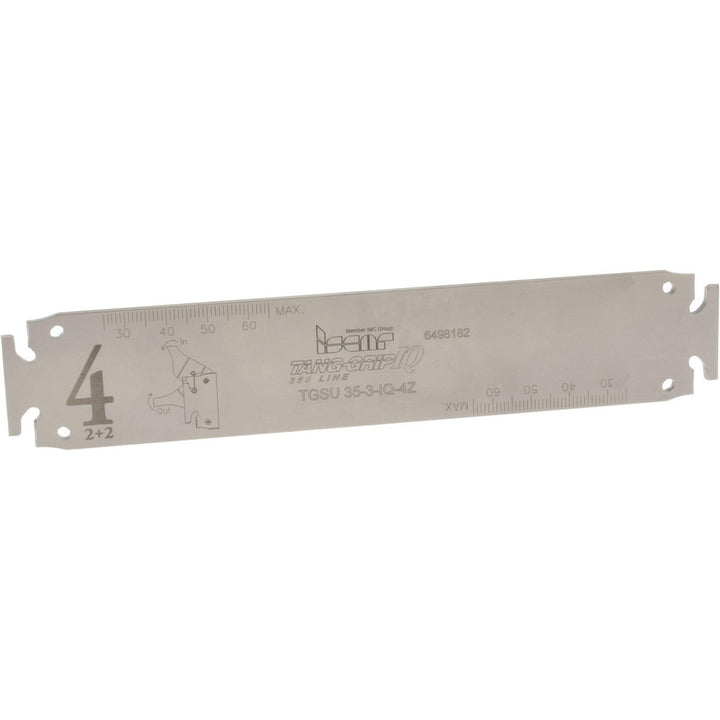

Indexable Cut-Off - Iscar 2302826

Iscar

Indexable Cut-Off - Iscar 2302826

MFR# 2302826Series Tang-GripIQ

$162.49List $167.80 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2302826 indexable cut-off. Series Tang-GripIQ.

Specifications

Blade height1.3800
Blade overall length7.0870
Blade styleTGSU
Blade width0.9800
Compatible insert size code3
Compatible insert styleTAG
Complete insert compatibilityTAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-6D; TAG N-UT; TAG N3.2JT; TAG N3C; TAG N3CB; TAG N3J; TAG N3JS; TAG N3JT; TAG N3M; TAG N3UT; TAG N3W; TAG R3C-15D; TAG R3C-6D; TAG R3C-8D; TAG R3J-6D; TAG R3JS-6D
Complete tool block toolholder style compatibilityTGTBU 19-35; TGTBU 25.4-35; TGTBU 31.8-35; TGTBU 31.8-35 HD; TGTBU 38.1-35; TGTBU 38.1-35 HD; TGTBU 38.1-56 HD
Cutting directionNeutral
Cutting height1.3070
Cutting tool applicationGrooving; Parting; Turning
End typeDouble
Insert holding methodSelf Grip
Insert seat size2.5
Insert styleTAG
Insert width0.1100
Insert width (mm)2.79
Maximum insert width0.1380
Maximum workpiece diameter4.7200
Minimum insert width0.1100
StandardsISO 13399
Tool block styleTGTBU
