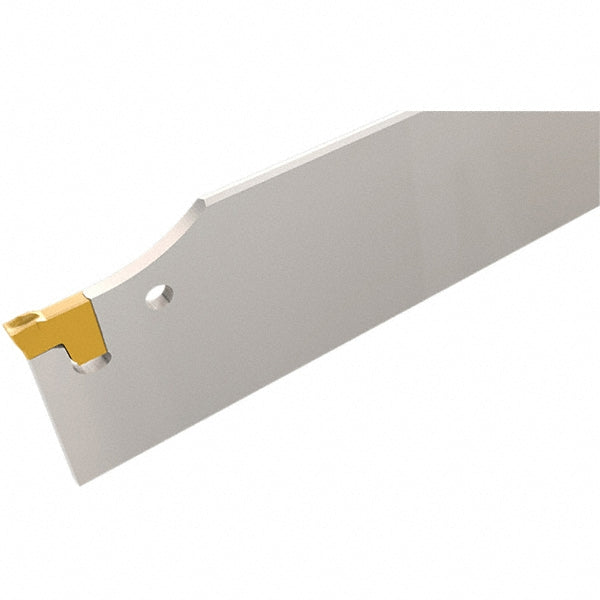

Indexable Cut-Off - Iscar 2302861

Iscar

Indexable Cut-Off - Iscar 2302861

MFR# 2302861Series JetHPLine; Tang-Grip

$155.43List $160.50 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2302861 indexable cut-off. Series JetHPLine; Tang-Grip.

Specifications

Blade height1.2600
Blade overall length5.9060
Blade styleTGFH
Blade width0.5100
Compatible insert size code1.6
Compatible insert styleTAG
Complete insert compatibilityTAG N1.6C; TAG N1.6J
Complete tool block toolholder style compatibilityC6 TBK-32L; C6 TBK-32R; C8 TBK-32R; C8 TBK-52R; HSK A100WH-TBK-32L; HSK A100WH-TBK-52L; HSK A63WH-TBK-32L; HSK A63WH-TBK-32R; SGTBL 25-6; SGTBN 16-2; SGTBR 19-2; SGTBR 25-6; SGTBU 16-5G; SGTBU 19-5G; SGTBU 19-6G; SGTBU 25.4-5G; SGTBU 25.4-6G
Cutting directionNeutral
Cutting height0.9760
Cutting tool applicationGrooving; Parting; Turning
End typeDouble
Insert holding methodSelf Grip
Insert seat size1.3
Insert styleTAG
Insert width0.0630
Insert width (mm)1.60
Maximum insert width0.0630
Maximum workpiece diameter1.5000
Minimum insert width0.0630
StandardsISO 13399
Tool block styleTGTBU JHP
