Iscar

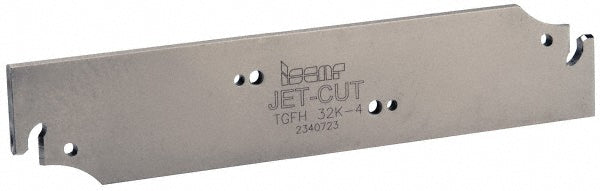

Indexable Cut-Off - Iscar 2392363
MFR# 2392363Cat# TGFH 32K-4Series Tang-Grip
$195.04List $201.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2392363 indexable cut-off. Series Tang-Grip.
Specifications
Blade height1.2600
Blade overall length5.9060
Blade styleTGFH
Blade width0.1340
Compatible insert size code4
Compatible insert styleTAG
Complete insert compatibilityTAG L5C-4D; TAG L5J-4D; TAG N4.8C; TAG N4A; TAG N5C; TAG N5J; TAG N5JT; TAG N5UT; TAG R5C-4D; TAG R5J-4D
Complete tool block toolholder style compatibilityC..TBK..,HS..TBK..,IM..TBK..,SGT..
Cutting directionNeutral
Cutting height0.9764
Cutting tool applicationGrooving; Parting; Turning
End typeSingle
Insert holding methodClamp
Insert seat size3.4
Insert styleTAG 4..
Insert width0.1457
Insert width (mm)3.70
Manufacturers catalog numberTGFH 32K-4
Maximum insert width0.1770
Maximum workpiece diameter3.9400
Minimum insert width0.1457
StandardsISO 13399
