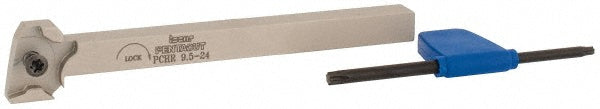

Indexable Grooving - Iscar 2393364
MFR# 2393364Series PentaCut
$164.39List $166.80
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2393364 indexable grooving. Series PentaCut.
Specifications
Back of bar to cutting edge0.3000
Compatible insert size codePENTA 24-BSPT; PENTA 24-ISO; PENTA 24-MT; PENTA 24-NPT; PENTA 24-UN; PENTA 24-W; PENTA 24-WT; PENTA 24N-C; PENTA 24N-J; PENTA 24N-PF; PENTA 24N-PF/P; PENTA 24N-Z; PENTA 24R-C; PENTA 24R-P; PENTA 24R/L-J; PENTA 24R/L-Z
Complete insert compatibilityPENTA 24N-J; PENTA 24N-J (Full Radius); PENTA 24N-PF; PENTA 24N-Z; PENTA 24R/L-J; PENTA 24R/L-Z
Coolant throughNo
Cutting tool applicationCut-Off; Grooving
Full radius insertYes
Hand of holderRight Hand
Head length0.8000
Insert compatibilityPENTA 24...
Insert holding methodScrew
Internal or externalExternal
Maximum depth of cut0.2560
Maximum groove width0.1250
Minimum groove width0.0197
Msc manufacturer numberPCHR 9.5-24
Overall length5.0000
Shank height0.3750
Shank length4.2000
Shank width diameter in3/8
StandardsISO 13399
Toolholder stylePCH
