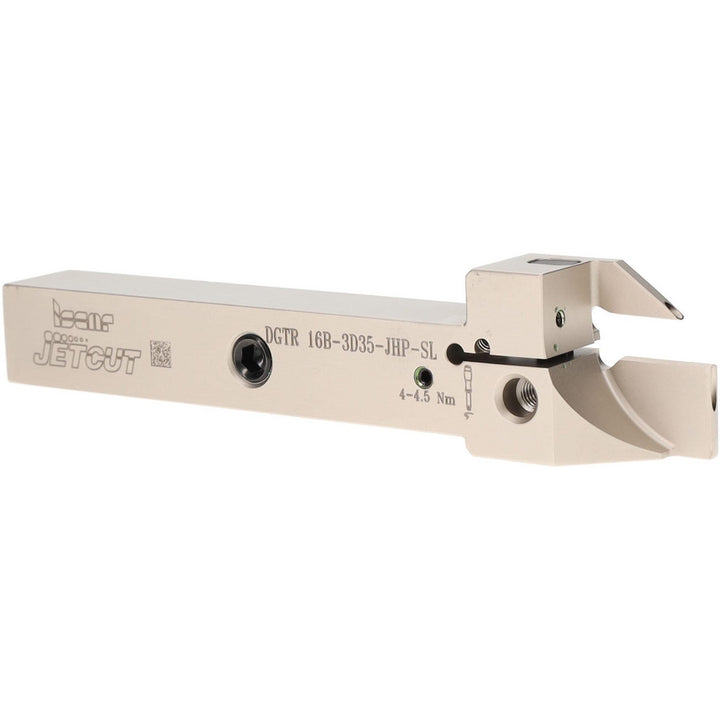

Indexable Grooving - Iscar 2393677
MFR# 2393677Cat# DGTR 16B-3D35-JHP-SLSeries Do-Grip; JetHPLine
$296.62List $306.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2393677 indexable grooving. Series Do-Grip; JetHPLine.
Specifications
Compatible insert size codeDGN-LF/LFT; DGN-MF; DGN-P; DGN-UT/UA; DGN-Z; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR-Z/ZS; DGR/L-C DGRC/LC-C; DGR/L-J/JS
Complete insert compatibilityDGL 1001J-8D; DGL 1400JS-15D; DGL 1402J-8D; DGL 2200JS-15D; DGL 2200JS-6D; DGL 2202C-6D; DGL 2202J-6D; DGL 3100JS-15D; DGL 3100JS-6D; DGL 3102C-15D; DGL 3102C-6D; DGL 3102J-15D; DGL 3102J-6D; DGL 4003C-4D; DGL 4003J-4D; DGL 5003C-4D; DGL 5003J-4D; DGL 630
Coolant throughYes
Cutting tool applicationCut-Off; Grooving
Hand of holderLeft Hand
Head height1.0512
Head length1.2598
Insert compatibilityDGN; DGR
Insert holding methodClamp
Internal or externalExternal
Manufacturers catalog numberDGTR 16B-3D35-JHP-SL
Maximum depth of cut1.3780
Maximum groove width0.1252
Minimum groove width0.1181
Overall length120.0000
Shank height0.6299
Shank length3.4640
Shank width diameter0.6299
StandardsISO 13399
Toolholder styleDGT
