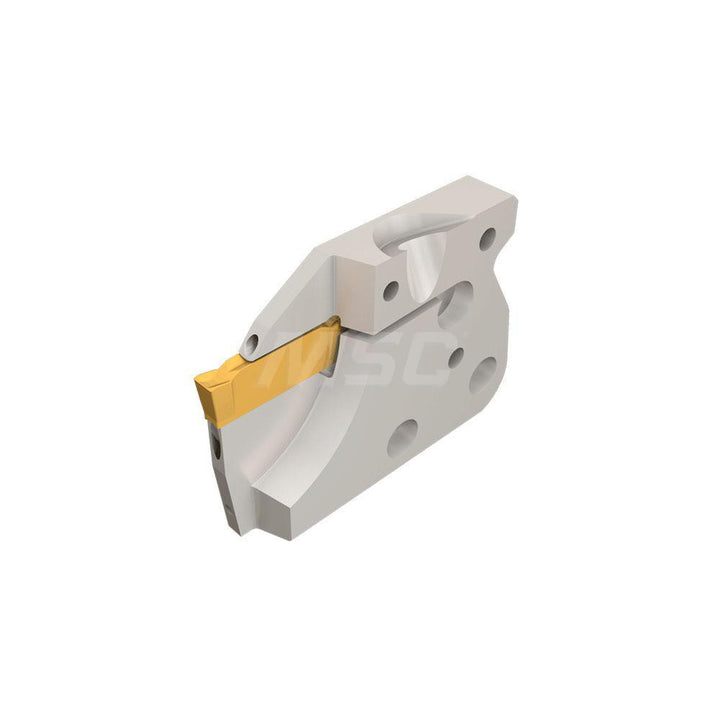

Indexable Cut-Off - Iscar 2393886

MFR# 2393886Cat# DGPAD 2R-D32-JHPSeries Do-Grip; JetHPLine; Modular Grip

$206.18List $212.90 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2393886 indexable cut-off. Series Do-Grip; JetHPLine; Modular Grip.

Specifications

Blade height1.2992
Blade overall length1.7913
Blade styleDGPAD
Blade width0.2835
Compatible insert styleDG. 2.
Complete insert compatibilityDGL 1001J-8D; DGL 1400JS-15D; DGL 1402J-8D; DGL 2200JS-15D; DGL 2200JS-6D; DGL 2202C-6D; DGL 2202J-6D; DGL 3100JS-15D; DGL 3100JS-6D; DGL 3102C-15D; DGL 3102C-6D; DGL 3102J-15D; DGL 3102J-6D; DGL 4003C-4D; DGL 4003J-4D; DGL 5003C-4D; DGL 5003J-4D; DGL 630
Complete tool block toolholder style compatibilityC3 MAHD-JHP; C3 MAHPD-JHP; C4 MAHD-JHP; C4 MAHPD-JHP; C5 MAHD-JHP; C5 MAHPD-JHP; C6 MAHD-JHP; C6 MAHPD-JHP; MAHPR 20-JHP; MAHPR 25-JHP; MAHPR 32-JHP; MAHR 20-JHP; MAHR 25-JHP; MAHR 32-JHP
Cutting directionRight Hand
Cutting height0.9449
Cutting tool applicationGrooving; Parting; Turning
End typeSingle
HandRight Hand
Insert holding methodSelf Grip
Insert styleDG..
Insert width0.0748
Insert width (mm)1.90
Manufacturers catalog numberDGPAD 2R-D32-JHP
Maximum insert width0.0984
Maximum workpiece diameter1.2598
Minimum insert width0.0748
StandardsISO 13399
Tool block styleC#-MAHD-JHP; C#-MAHPD-JHP; MAHPR/L-JHP; MAHR/L-JHP
